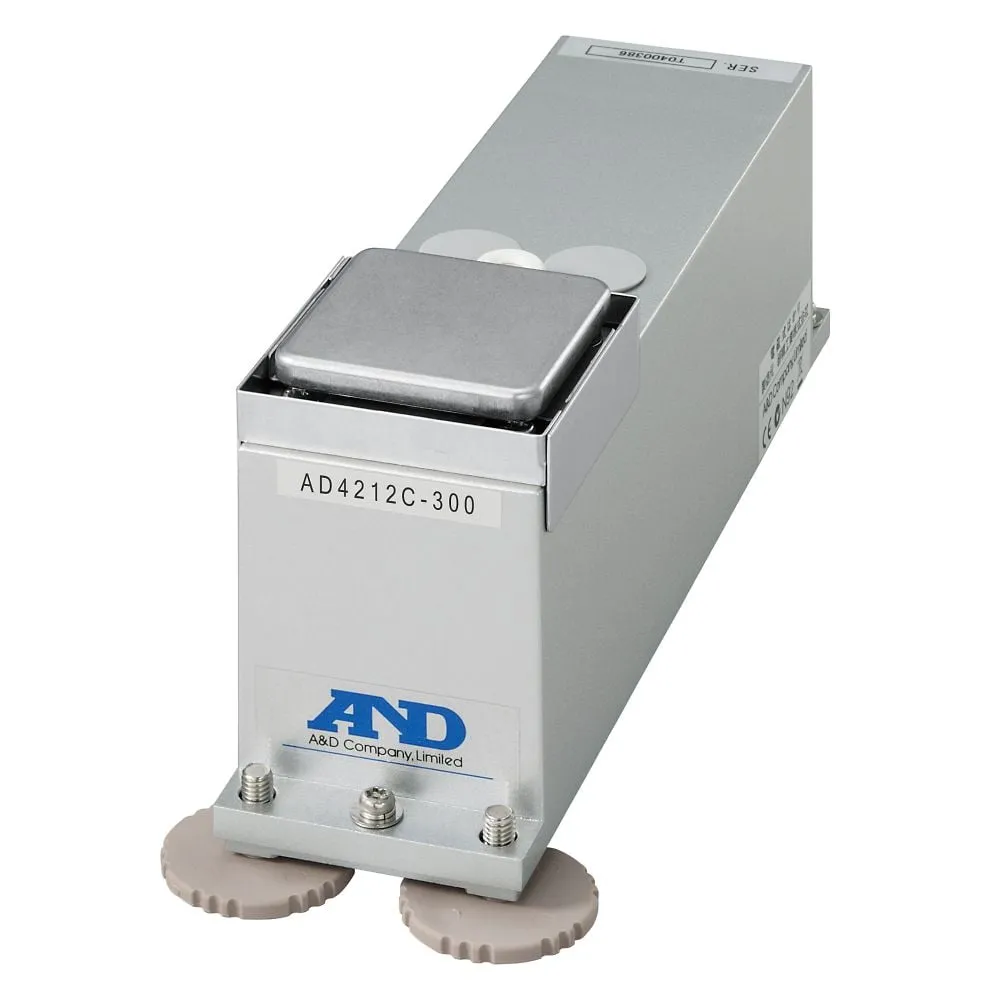

63-7049-28 AD 4212 C Series High-precision Measurement Sensors for Use in Production Lines AD-4212C-300
Product Description
Product Model: 63-7049-28Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 63-7049-28
Product Brand: A&D
Features
- [Application]
- Ideal for production processes of secondary batteries, electronic components, pharmaceuticals, resist inks, coatings, and oils.
- [Features]
- High-precision metering sensor for built-in production line.
- EM-DLC/electromagnetic cell (electromagnetic digital load cell) (R), high precision, high speed, compact
- Equipped with C-SHS (R), fast response of 0.5 seconds, fast output of 50 times per second (when baud rate of 9600 or higher is selected)
- Metering data can be directly transmitted to panecon, PLC, PC, etc. (standard attached cable 10 m)
- Compact metering section 59 mm wide, free layout is possible.
- Dustproof/Waterproof Metering Unit IP65
- RS-232C Interface Standard
- Data Communication Software WinCT-AD4212 C Standard Attached (Calibrates balance and adjusts metering speed)
- External Controller/Metering Line Controller allows you to check metering values, calibrate balance and adjust metering speed.
- BCD output possible
- CC-Link connection possible
- LAN support possible
- Metering section case with excellent chemical resistance
Spec
- Weighing: 320 g
- Minimum display: 0.001 g
- Stable time (Good environment, with FAST): 0 to 30 g approx. 0.5 sec., 30 to 320 g approx. 1.0 sec.
- weighing tray Dimensions: 50 x 50 mm
- External dimensions: 59 (W) x 231 (D) x 91 (H) mm
- Weight: approximately 1.6 kg
- Accessories: Instruction Manual, Data Communication Software WinCT-AD 4212 C, Calibration standard weight (OIMLE Class 2 Accuracy), AC Adapter, AC Adapter Identification Seal, RS -232 C Output Cable (10 m), weighing tray, Countersunk Screws, Countersunk Screws (Countersunk Screws: M4 x 6)
