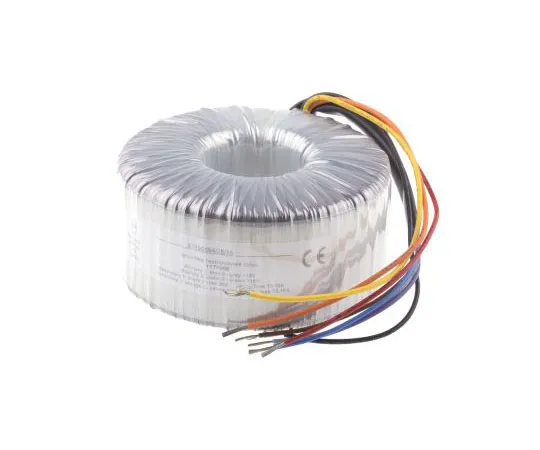

63-4664-20 RS PRO 2 x 115V ac, 2 x 50V ac Toroidal Transformer, 300VA 2 Output 117-6066
Product Description
Product Model: 63-4664-20Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4664-20
Product Brand: RS PRO
Features
- Toroidal Transopen 80→3000 VA
- These open-style toroidal transformers in RS Pro can be ***d for general applications such as control circuits. These high-quality toroidal transformers have a low-loss, low-noise toroidal core. It has primary and twin secondary windings and can be connected in series or parallel or ***d separately.
- Features
- Environmentally fri***ly, low energy loss, high efficiency, low regulatory design 100% Electrical performance test/flash test
Spec
- Primary Voltage Rating:2 x 115V ac
- Secondary Voltage Rating:2 x 50V ac
- Power Rating:300VA
- Number of Outputs:2
- Height:60mm
- Weight:2.7kg
- Diameter:117mm
- Dimensions:117 (Dia.) x 60mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Mounting Type:Surface Mount
- Termination Type:Termination Wire
- Isolation Voltage:4kV ac
- CODE No.:117-6066
