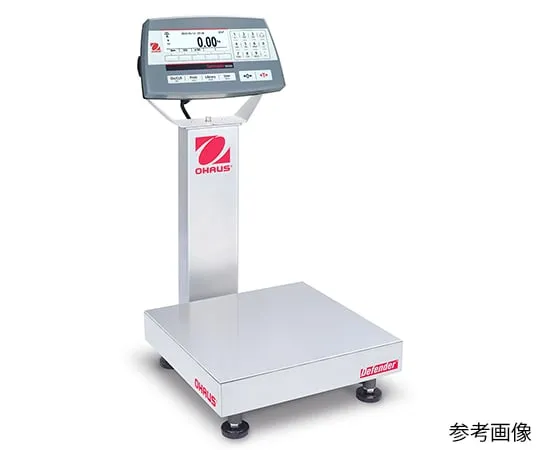

63-5729-47-20 Digital Platform Scale D 5000 Series 3/6 kg 0.2/0.5 g with Calibration Certificate D52P6RQDR1JP
Product Description
Product Model: 63-5729-47-20Product Brand: OHAUS Corpor […]
Contact Us
Product Details
Product Model: 63-5729-47-20
Product Brand: OHAUS Corporation
Features
- Composed of durable stainless steel measuring plates, painted steel frames, and aluminum load cells
- Display pole standard (Cable connecting the display to the measuring table can be inserted and disconnected, and the pole can be removed.)
- Display with easy-to-read and easy-to-understand guides (dot matrix display)
- 5 indep***ent function buttons and alphanumeric keypad for easy operation
- RS232 standard
- Various connection options for various environments such as WiFi and Bluetooth communication (WiFi/Bluetooth, discrete I/O with relay)
Spec
- Hail weight: 3/6 kg
- Minimum display: 0.2 g/0.5 g
- Repeatability (standard deviation): 0.4/1 g
- Linearity: +/- 0.4 g/1 g
- Stable time (typical value): 1 second or less
- Weighing mode: Weight, Count,%, Check Weighing, Check Count, Animal/Labeled Value Hold
- Display: Made of ABS
- Measuring part Material: Stainless steel measuring table, painted steel frame, IP 67 aluminum load cell coated with silicone for water resistance
- Pole length for display, Material: 374 mm Painted Steel
- Measuring table dimensions: 305 x 305 mm
- Body dimensions: 305 x 422 x 574 mm
- Body weight: 10 kg
- Communications Output: RS 232 C (standard equipment), WiFi/Bluetooth (sold separately), Ethernet (sold separately), RS 485/USB (sold separately), Analog Output (sold separately), Digital I/O (sold separately)
- Power: 100 -240 VAC, 50/60 Hz Universal power (standard included)
