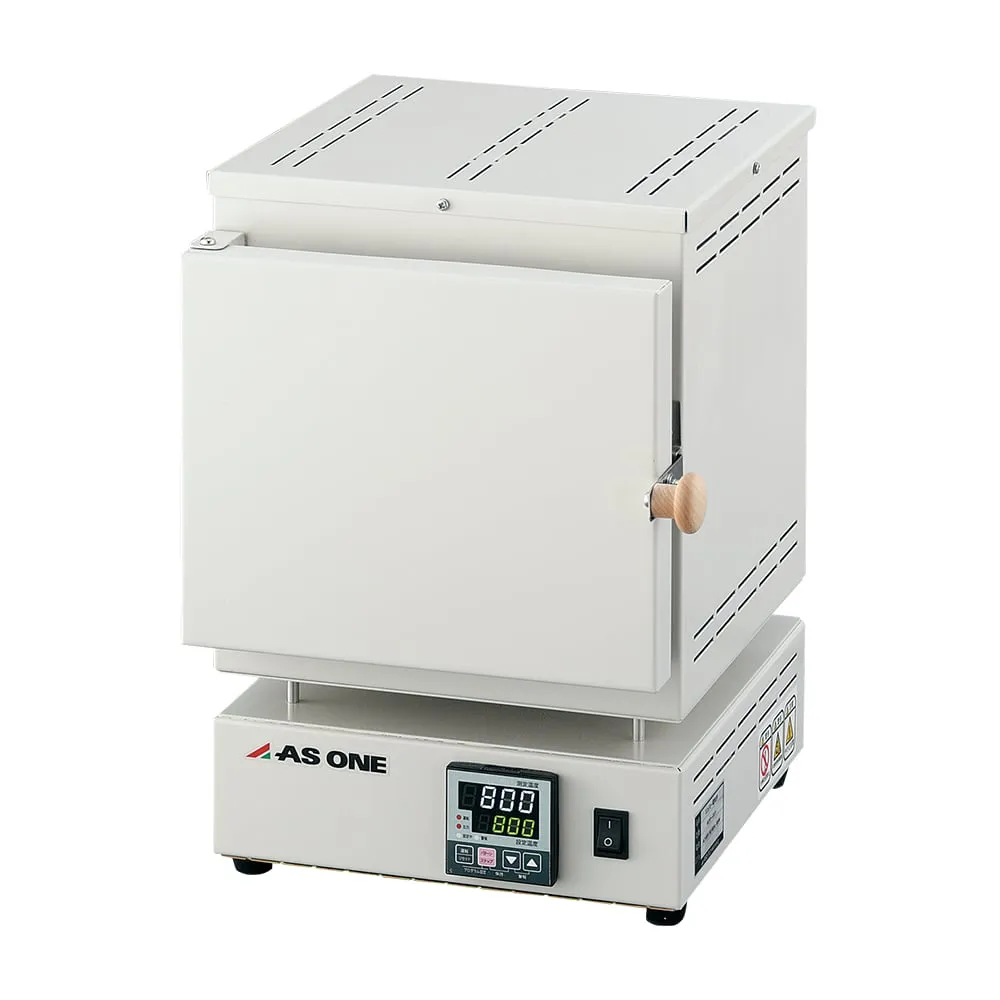

3-6543-01 Small Program Electric Furnace (High-Temperature Specification) ROP-001H
Product Description
Product Model: 3-6543-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6543-01
Product Brand: AS ONE Corporation
Features
- Compact personal type that is easy to handle and can be ***d at high temperatures.
- Up to 4 patterns of 16 step programs can be set.
- It has a built-in safety circuit to shut off the heater in case of temperature abnormality and a burnout function to detect sensor abnormality.
- You can set the temperature and check the furnace temperature with the digital display.
Spec
- Model number: ROP-001H
- Outer dimension (mm): 210 x 275 x 300
- Inner furnace dimension (mm): 90 x 110 x 70
- Operating temperature range: 100 - 1300℃ (Regular ***: Until 1250℃)
- Sensor: R class thermocouple
- Temperature control system: PID control
- Program function: 16 steps, 4 patterns
- Temperature settings unit: 1℃
- Time settings unit: 1 minute
- Exterior: Steel coating
- Interior: Ceramic fiber
- Heater: 1000W
- Power supply: 100VAC 50/60Hz
- Power cord length: 1.8m (3P plug)
- Weight: Approx 5kg
- *Furnace internal dimension includes sensor projections.
