Features

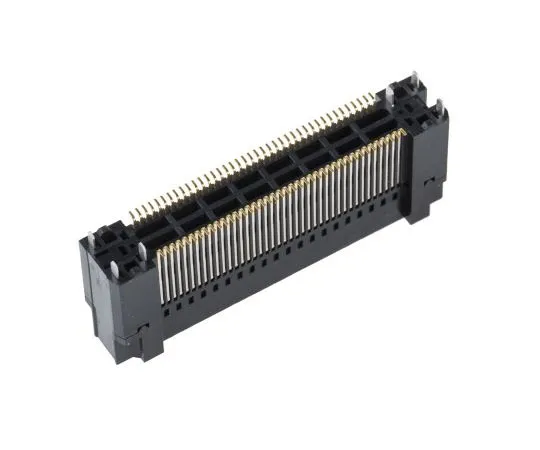

• FunctionMAX FX18 Series 0.8 mm Board-to-Board High Speed Signal Connector
• FunctionMAX FX18 Series 0.8 mm High Speed Transmission Board-to-Board Connectors are horizontal, vertical and stacking compatible.
• The FunctionMAX FX18 0.8 mm Board-to-Board connector is capable of high-speed transmission of up to 10 Gbit/s and is compatible with PCI-Express
• 2.0.
• The multifunction contact ***d consists of ground contact, power contact, and 3-step sequence contact.
• The ground contact with enhanced grounding characteristics is located adjacent to the differential pair contact to reduce crosstalk.
• Power contacts can support up to 3A per pin, eliminating the need to *** signal contacts for power supply.
• This feature saves space by requiring fewer pins.
• A total of 12 A is available.
• The three-step sequence contacts are located in different positions in the housing to provide grounding and detection capabilities.
• In addition, the 6 through-hole pins improve substrate retention and are resistant to torsion.
• In addition, a large engagement guide on the header assists engagement with the receptacle.
• Features & Benefits: 10+ Gbit/s high-speed transmission Ideal for horizontal, vertical and stacking substrate-to-substrate engagement
• Advanced multifunction contact through-hole pin improves torsional strength Large engagement guide stacking height 15 mm, 20 mm, 25 mm, 30 mm is possible
• Applications: The FunctionMAX FX10 stacking connector is suitable for a wide range of applications. Main applications: Medical equipment, industrial control equipment, industrial motors, servers, measurement equipment, smart meters, base station transceivers, PLCs, etc.
• FunctionMAX brand
• The FunctionMAX Board-to-Board connector is designed to meet the needs of advanced technology in industrial applications for superior performance and maximum functionality.
• FunctionMAX products include connectors with floating designs and connectors with high-speed transmission.
• The high-speed transmission connector is designed based on a differential transmission system to achieve high-speed signals and noise resistance.
• FunctionMAX Board-to-Board Connectors offer excellent performance in a variety of environments.
