Features

• Glow Wire Compatible (IEC60695-2-11 Compatible)

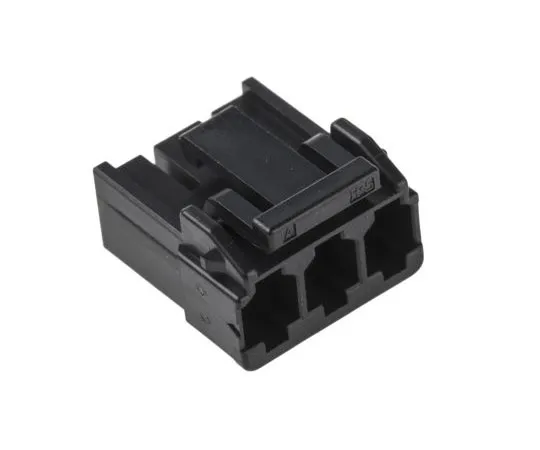

• Hirose Electric EnerBee DF63 Series 3.96 mm Crimp Socket Housing
• The DF63 Series 3.96 mm Wire-to-Board Crimp Socket Housing for Small Power Supply is an EnerBee product.
• The name "EnerBee" is inspired by a small but energetic bee, and expresses the concept of "compact high performance."
• The current capacity is up to 15 A when using 16 AWG wire.
• The socket connector has a robust positive locking mechanism designed to prevent accidental engagement from falling or external impact.
• When engaged, a firm click is clearly felt to indicate that the connector is fully inserted, ensuring a secure electrical and mechanical connection.
• A positive locking mechanism in the middle of the housing equalizes the lock and prevents Cable entanglement that can occur with side locks.
• In addition, the protective mechanism employed in the housing prevents incomplete insertion of the crimping contact.
• Molded contact retention tabs, or lances, are built into the housing rather than into the crimp terminals to prevent wire entanglement during assembly.
• The housing design also includes color coding and keys to prevent differences between the different core numbers.
• The connector contacts are separated from each other by internal walls to prevent short circuits.
• Features & Advantages: Small design, yet capable of high current of 15 Am. solid click and reliable positive locking mechanism to prevent incomplete insertion of crimped contact mechanism to prevent wire entanglement by molded lance design to prevent mismatching key individually "boxed" contact to prevent short circuit support for glow wire
• Applications: The small, high-performance Enerbee DF63 connector is ***d in a wide range of industrial equipment.
• Applications include robots, medical devices, industrial machinery, smart meters, gaming devices, and home appliances.
• EnerBee brand
• The name "EnerBee" is inspired by a small but energetic bee, and expresses the concept of "compact high performance."
• EnerBee product connectors offer advanced connectivity solutions for a wide range of applications and can handle high current and high voltage.
• Its small size maximizes space savings and makes it an excellent replacement for other bulky components on the market.
• Replacing terminal locks with EnerBee's built-in locking mechanism improves assembly quality and efficiency.
