Electronic/Electrical Parts and Controll Equipments

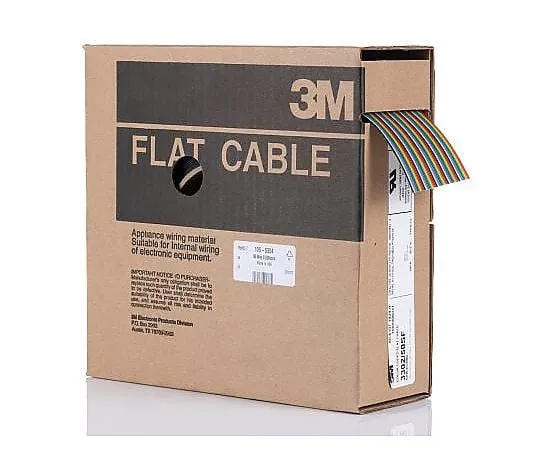

63-4658-76 FPC/FFC cable 50 wires Total length 30 meters 3302-50100FT
Product Description
Product Model: 63-4658-76Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-4658-76
Product Brand: 3M Company
Features
- These cables are not int***ed as power cables or cables for direct connection to the equipment's main power source.
- 0.05 "(1.27 mm) Pitch Ribbon Cable - Type 3302
- 3302 Series 10 Colors Repeatedly Clear Carrier Identification Color Ribbon Cable (28 awg wire with 0.05" center-to-center distance) allows many terminations of various 3M IDC connectors The strand is flexible and ext***s product life.
- Insulation resistance is > x 10 9 Ω/3 m
- Connector and cable compatibility
- This cable is especially suitable for 3M dedicated IDC connector products
- Part number < 323-7845') 323-7845/and < 121-0040') 121-0040/are common as 3M connector products
Spec
- Number of Pieces: 1 reel (30 m)
- Number of poles: 50
- Pitch: 1.27 mm
- AWG American Wire Gauge Standard: 28
- Reel length: 30 m
- Width: 63.5 mm
- Cable shape: ribbon
- Sheath Color: Multicolor
- Allowable Voltage: 300 V
- Shielded/unshielded: unshielded
- Conductor Strand Type: Standard
- Number of strands: 7
- Operating temperature Min: -20 degrees C
- Operating temperature mAx: + 105 C
- Characteristic Impedance: 105 ohms
- RoHS compliance status: Compliance
- Securities Code: 105 -5354
