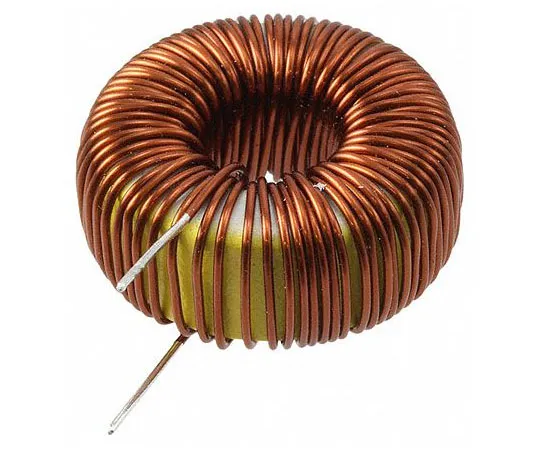

63-4658-56 RS PRO 33 μH ±15% Power Inductor, 3A Idc, 0.038mΩ Rdc 104-8430
Product Description
Product Model: 63-4658-56Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4658-56
Product Brand: RS PRO
Features
- ISO-9001:2000 S-16949:2002 ISO-14001:2004 RS Pro toroidal power inductor, 22→1000 uf The RS Pro toroidal power inductor can be ***d for EMI filtering and energy storage.
- Compact design, effective in controlling AC output ripple of switch mode power supply.
- Various combinations of inductance values and current ratings are available.
- Features • Low-cost 0 radiation design High-temperature soldering, easy to attach to substrate with pin-on leads Operating frequency: Up to 100 kHz RoHS
Spec
- Inductance:33 μH
- Maximum DC Current:3A
- Mounting Type:Radial
- Maximum DC Resistance:0.038mΩ
- Tolerance:±15%
- Diameter:19mm
- Height:8mm
- Dimensions:19 (Dia.) x 8mm
- Series:DP
- Lead Diameter:0.63mm
- CODE No.:104-8430
