Features

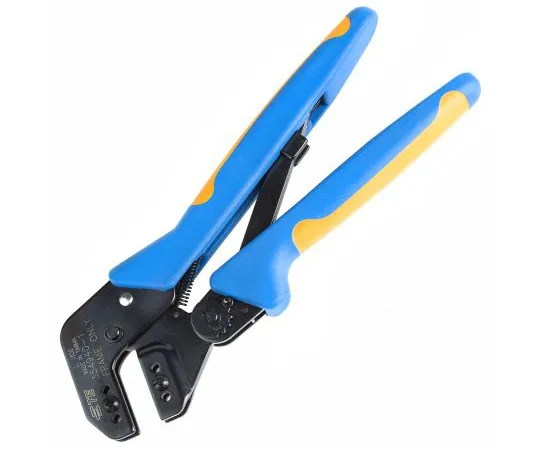

• TE Connectivity PRO-CRIMPER III Manual Crimping Tool for PIDG FASTON and PLASTI-GRIP terminals
• PRO-CRIMPER III Manual Crimping Tool Frame (Part No. < 278-9373') 278-9373 and Die Set (Part No. < 361-9590') 361-9590 are ***d for crimping PIDG, PIDG Faston and PLASTI-GRIP terminals.
• This PRO-CRIMPER III manual crimping tool is equipped with an adjustable ratchet, which enables the entire crimping process and provides an emergency ratchet release function.
• Corresponding terminals that can be crimped with this crimping tool and die: PIDG and PLASTI-GRIP terminals: Red insulation, Wire size: 22-16 AWG, Maximum wire diameter: 3.56 PIDG and PLASTI-GRIP terminals: Blue insulation, Wire size: 16-14 AWG, Maximum wire diameter: 4.32 PIDG and PLASTI-GRIP terminals: Yellow insulation, Wire size: 12-10 AWG, Maximum wire diameter: 6.35 PIDG Faston terminals: Red insulation, Wire size: 22-16 AWG, Maximum wire diameter: 3.56 PIDG Faston terminals: Blue insulation, Wire size: 16-14 AWG, Maximum wire diameter: 4.32 Cushion handle (can be operated with both hands) Reduces grip pressure required for crimping The head is inclined, so you can operate it with your hands and wrists in a comfortable position Ratchet release mechanism Replaceable die set, order separately
