Electronic/Electrical Parts and Controll Equipments

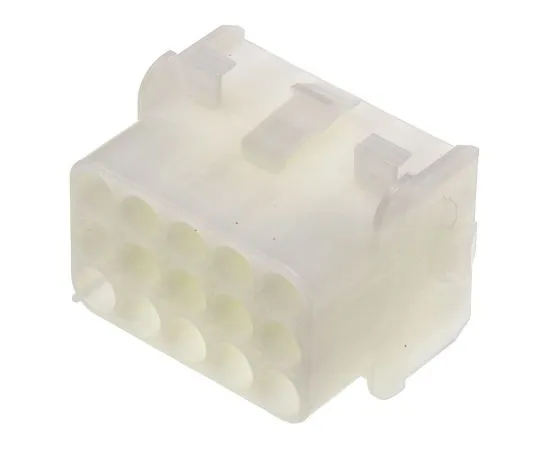

63-4656-54 Connector Housing Female 15 Pole 3 Row Maiten Lock 1-480711
model:
63-4656-54
brand:
TE Connectivity
Product Description
Product Model: 63-4656-54Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4656-54
Product Brand: TE Connectivity
Features
- TE Connectivity Universal MATE-N-LOK Free-Hanging Receptacle Connector Housing
- For wire-to-wire or wire-to-substrate applications, this 6.35 mm pitch spaced universal MATE-N-LO receptacle housing product can be cable or panel mounted.
- These universal MATE-N-LOK receptacle housings are made of UL94V-2 or UL94V-0 nylon. A snap-lock latch ensures accurate engagement with reliable quick release and polarization.
- These universal MATE-N-LOK receptacle housings can accommodate pin or socket contacts.
- For optimum contact see part number < 720-2133 ') 720-2133/For crimping tools see part number < 849-114') 849-114/. For die sets, refer to part number < 849-136') 849-136/etc. For strain relief clamps, refer to representative part number < 302-0120') 302-0120/.
- UL94V-0 Connector
Spec
- Number of pieces: 1
- Number of contacts: 15
- Number of lines: 3
- G***er: Female
- Mounting Type: Panel Mount
- Series: UniversalmATE-N-LOK
- Compatible products: 6.35 mm center-line soft-shell pin and socket connector
- Body orientation: straight
- Depth: 27.43 mm
- Housing Material: Nylon
- RoHS compliance status: Compliance
- Securities Code: 848 -981
