63-4656-27 Y-shaped crimp terminal yellow 2.6 to 6.6 mm 2 12 AWG to 10 AWG 34176
model:
63-4656-27
brand:
TE Connectivity
Product Description
Product Model: 63-4656-27Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4656-27
Product Brand: TE Connectivity
Features

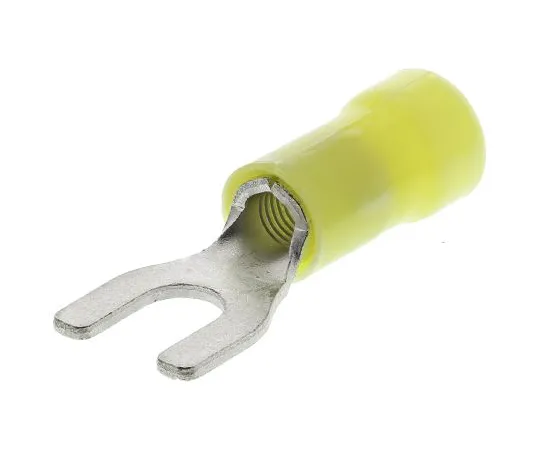

- TE Connectivity PLASTI-GRIP Spade Wire Crimp Terminals
- PLASTI-GRIP Closed barrel spade tongue wire terminals are made of highly conductive copper and are tinned. Has 94V-0 grade vinyl insulation expansion sleeves with high insulation resistance.
- The inner surface of the barrel of this PLASTI-GRIP closed barrel spade tongue crimping terminal is saw-toothed to maximize electrical contact and extension strength after crimping.
- Funnel entries into the wire barrel so you can easily insert strip lines.
- This PLASTI-GRIP spade crimp terminal is available in a variety of styles, including spades, spring spades, and flange spades.
- Red, 0.25→1.6 mm2 Blue, 1.0→2.6 mm2 Yellow, 2.7→6.6 mm2
Spec
- Quantity: 1 bag (100 pieces)
- Series: PLASTI-GRIP
- Insulation: Insulation
- Width: 10.31 mm
- Minimum wire size mm2: 2.6 mm2
- Maximum wire size mm2: 6.6 mm2
- Minimum wire size AWG: 12 AWG
- Maximum wire size AWG: 10 AWG
- Stud Size: M5
- Color: Yellow
- Total length: 27.81 mm
- Contact Material: Copper
- RoHS compliance status: Compliance
- Securities Code: 842 -179
