Features

• Determine the operating length of the pin to be less than the nominal length: 0 · 145 inches for 3/16 pins, 0 · 176 for 1/4 pins, 0 · 224 inches for 5/16 pins, and 0 · 25 for 3/8 pins, respectively. The diameter subtracted from the nominal length is related to the size of the Klevis pin to which it fits.
• 839-268 is sized and wire size (d) is 3/16 inch x 1 mm 839-274 is sized and wire size (d) is inches x 1.2 mm 839-280 is sized and wire size (d) is 5/16 inch x 1.6 mm 839-296 is sized and wire size (d) is 3/8 inch x 1.8 mm See data sheet for details.

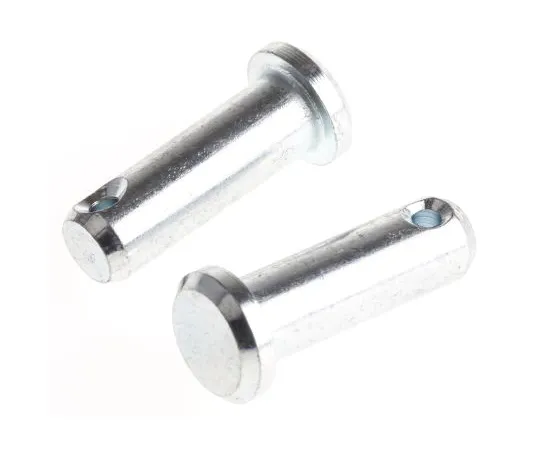

• Clevis Pins and Clips
• Imperial sized clevis pins and fixed clips are made of mild steel and gloss galvanized for corrosion resistance.
• However, the soft steel retaining clip retains its shape.
• Clevis pins and fixed clips are sold separately.
