automaticdiluter

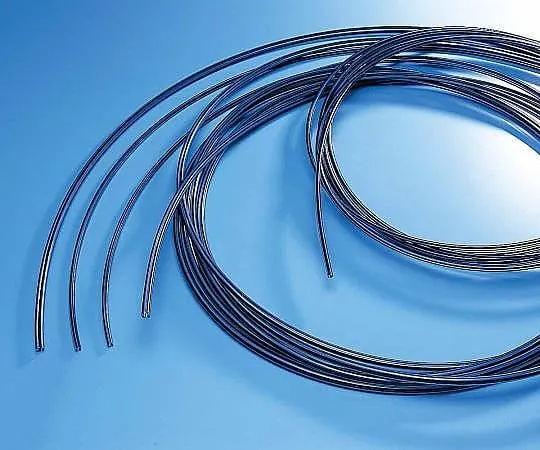

2-375-01 NAFLON(R) PFA-AS Tube 9003-AS 3.96 x 6.35φ 1 Roll (10m) 9003-PFA-AS
model:
2-375-01
category:
automaticdiluter
Product Description
Product Model: 2-375-01 Features The inner and outer la […]
Contact Us
Product Details
Product Model: 2-375-01
Features
- The inner and outer layers of the tube are equipped with striped conductive PFA sections.
- Equipped with an antistatic function, it prevents tube insulation breakdown due to tribocharging with fluid.
- It prevents tube insulation breakdown due to transfer of organic solvents, fuels, refrigerants, powders, steam, etc.
Spec
- Material: Naffon (R) PFA-HG (Fluorine Plastic), conductive part / conductive PFA (Fluorine Plastic)
- Operating temperature range: -40 ~° C to 260 ° C
- Inner diameter x outer diameter (mm): 3.96 x 6.35
- This item is in an inch size standards
- One volume (10 m)
- * Be sure to ground it when using it. Conductive binding band (2-381-01) is provided
- * Since the conductive PFA section contains special charge insulation, the customer must test and verify the purity of the product in order to require purity.
- RoHS3 (EU)2015/863 Certificates can be issued
Related product recommendations
You may also be interested in the following products
![78-0151-82 Tying Band (Stainless Steel (SUS304)) 4.6 x 840mm Maximum Diameter; 254mm [10Pcs] EA463FW-9](https://www.jgauge.com/wp-content/uploads/2025/05/72d8479fc64c581bde742615a5c4d096.webp)
automaticdiluter

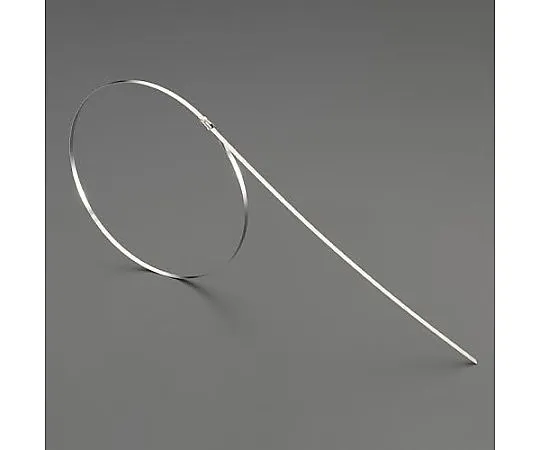

78-0151-82 Tying Band (Stainless Steel (SUS304)) 4.6 x 840mm Maximum Diameter; 254mm [10Pcs] EA463FW-9
