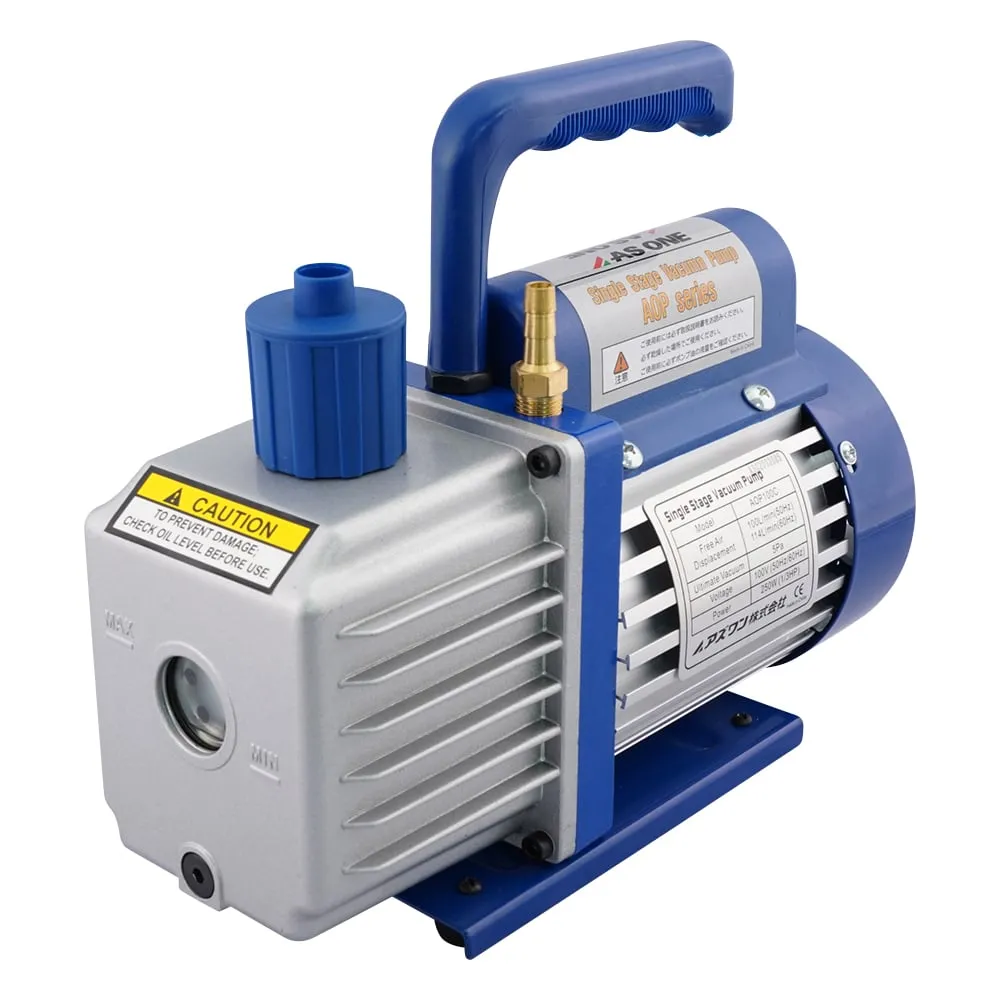

2-943-03 Economy Oil-Sealed Rotary Vacuum Pump 100 (50Hz) /114 (60Hz) AOP100C
Product Description
Product Model: 2-943-03Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 2-943-03
Product Brand: AS ONE Corporation
Features
- Affordable single-stage oil rotary pump.
- It is an economy one-stage oil rotary vacuum pump.
- Compact, easy to handle, easy to carry with handles.
- The intake port is a φ6mm hose nipple, and the exhaust port is a simple trap type (both cannot be changed), so it is easy to connect.
Spec
- Achieving pressure: 5Pa
- Power supply: 100VAC 50/60Hz
- Power consumption: 250W
- Power cord length: 2m
- Inlet port size: φ6 mm
- Safety device: Over current protection equipment
- Oil capacity: 350mL
- Weight: 6.5kg
- Accessories: Hexagonal wrench (for oil discharging valve)
- Exhaust speed (L/min): 100 (50Hz)/114 (60Hz)
- Size (mm): 278 x 119 x 216
- Model number: AOP100C
