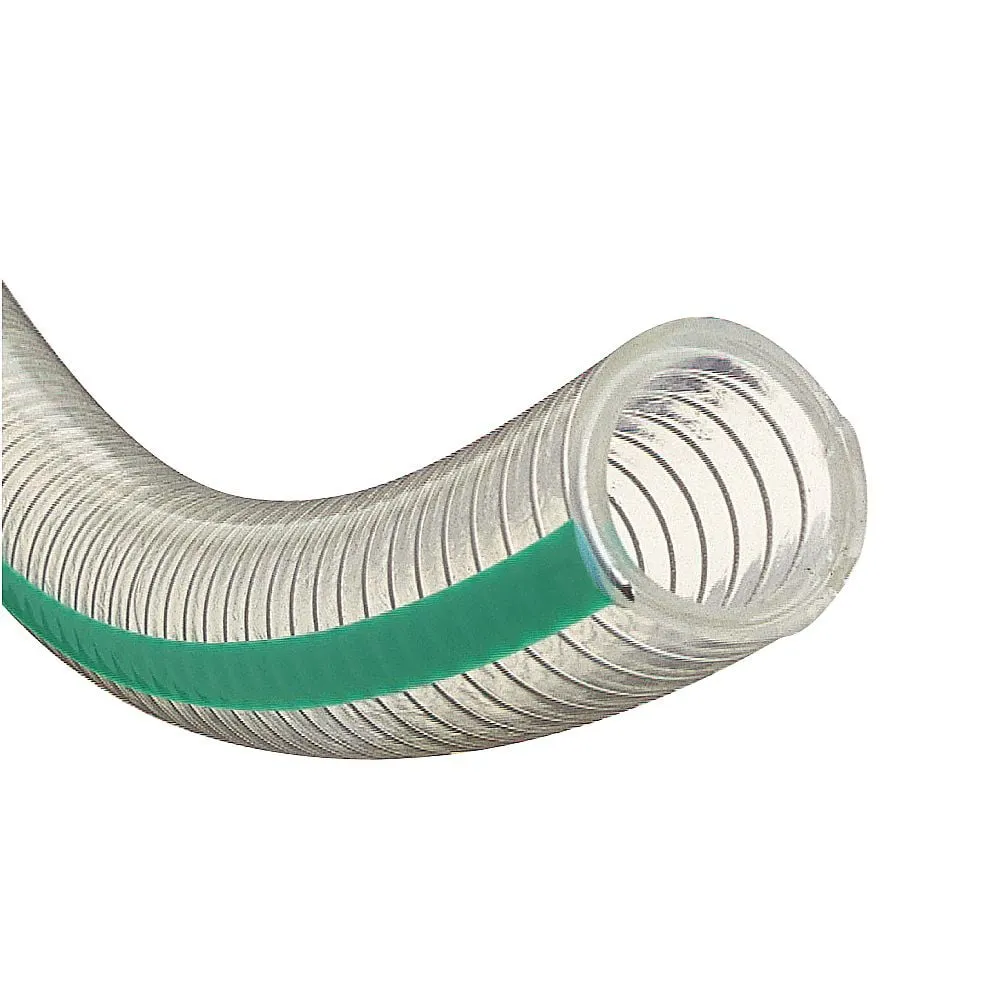

2-3628-01 TOYOFOODS S HOSE 25 x 33mm TFS-25
model:
2-3628-01
category:
automaticdiluter
Product Description
Product Model: 2-3628-01 Features "Main application": F […]
Contact Us
Product Details
Product Model: 2-3628-01
Features
- "Main application": For transport and suction of food, beverages, oils and fats, etc. "Food compatible": Uses non-phthalic acid plasticizer for food, beverages, oils and fats. Pressure resistant hose for pressure feeding and vacuum (suction) made of soft vinyl chloride.
- Heat-Resistant Hose: Heat-Resistant Pressure Resistant Hose that can be safely ***d up to 70°C
- Oil-Resistant Hose: Oil-Resistant Hose that complies with the Food Sanitation Law and is safe and has a long life, since the hose does not harden even with fatty foods.
- "Shape Retaining": Hard steel wire coil reinforced structure, resistant to breaking and collapsing of hose, suitable for vacuum (suction) transport.
- "Various sizes": Pressure resistant hose for pressure feeding and suction (inner diameter 25~100 mm) with various sizes.
- "Legal Compliance": Food Sanitation Law Compliance (the Ministry of Health, Labour and Welfare Notification No. 196), FDA Compliance
- "Standard Compliance": RoHS2 Compliance (as of October 2021)
Spec
- Model number: TFS-25
- Inner diameter x outer diameter (φmm): 25 x 33
- Minimum bent radius (mm): 100
- Material: Soft PVC (polyvinyl chloride), Strengthening agent/hard steel wire
- Operating temperature range: -5 to +70℃
- Used pressure (70℃): -0.1 - 0.3MPa
- Standard length: 50m
- Food sanitation act compliance
- *For number of orders, please *** "m" unit.
- Display price is the price of 1m.
- Application: for transporting various foods (including fats and oils and fatty food) and drinking water, etc.
