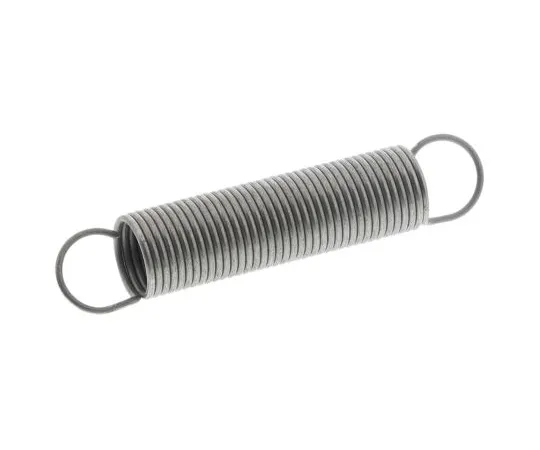

63-4655-09 RS PRO Stainless Steel Extension Spring, 25mm x 5mm 821-425
Product Description
Product Model: 63-4655-09Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4655-09
Product Brand: RS PRO
Features
- All right-handed helical spring dimensions of materials conforming to DIN 17224 No
- 1 4310 or BS2056 EN58A conform to DIN2097 (grade 2)
- Stainless steel tensile springs
- Tensile springs are mounted in a shrunk state using components at both ***s of the spring. Pull both ***s of the tension spring to restore it. The spring tension can match the load requirements of the int***ed application.
- Features and Advantages: Energy absorption and storage Resistance to tensile force Various sizes of winding spring resisting elongation Use: Interior and exterior garage door assembly Vise plier Trampoline cleaning equipment Agricultural machinery
Spec
- Material:Stainless Steel
- Free Length:25mm
- Maximum Ext***ed Length:80.80mm
- Outside Diameter:5mm
- Wire Diameter:0.45mm
- Initial Tension:5.40N
- Spring Rate:0.09N/mm
- CODE No.:821-425
