Features

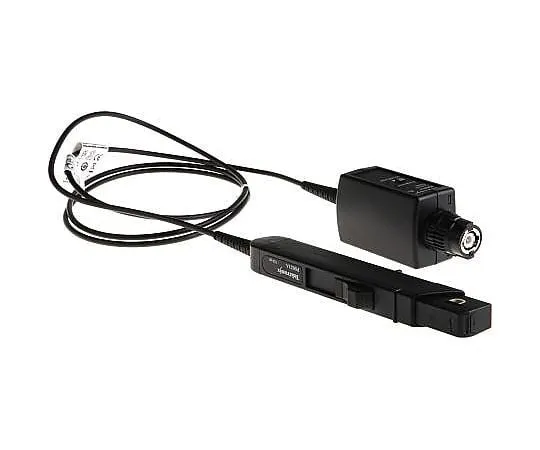

• UL61010-2-032, UL61010-1, CAN/CSA C22.2 No 61010-1, CAN/CSA C22.2 No 61010-2-032, EN61010-1, EN61010-2-032. Tektronix P6021A. The Tektronix P6021A provides versatile AC current measurements. It offers wide-band performance for general purpose applications, with excellent low-frequency characteristics. Bandwidth is 120Hz to 60MHz and the probe range is switchable between 2mA/mV and 10mA/mV. Applications include motor drives, power inverters/converters, power supplies and avionics. Split core construction facilitates circuit connection Clips on to current-carrying conductor (i.e. does not break circuit) Shielded probe head (200x16x32mm) eliminates accidental grounding of circuit under test Maximum conductor diameter 5mm For 1MΩ inputs Bandwidth 120Hz to 60MHz 10.6A RMS, 250A peak, 10mA sensitivity 1.5m (5ft) cable
