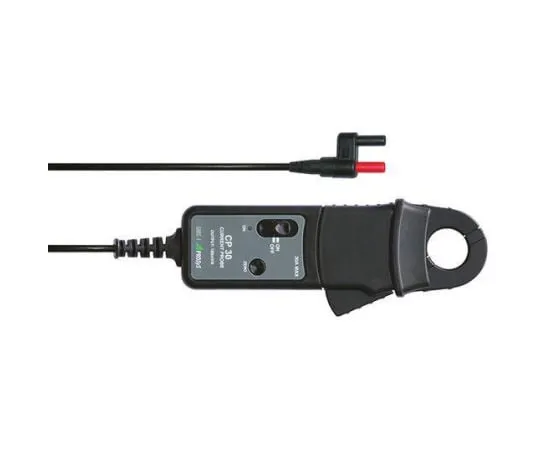

63-4986-93 GMC-I Prosys CP- 30 Multimeter Current Clamp Adapter, 30A dc, 30A ac, 25mm CP 30
Product Description
Product Model: 63-4986-93Product Brand: GMC-I Prosys Fe […]
Contact Us
Product Details
Product Model: 63-4986-93
Product Brand: GMC-I Prosys
Features
- 1 x PP3 9V alkaline battery & instructions. CP3 Series AC/DC 30A ac/dc Current Probes. Precision current clamp suitable for non-intrusive current measurements in electrical electronic, process and light industrial systems automotive systems, battery performance testing and battery charging systems. 30A ac/dc measurement range Simple push button auto zero Auto power off conserves battery life wide bandwidth & high external field rejection Excellent accuracy over full range EN61010 Safety Rating CAT III 300V
Spec
- Quantity：1piece
- Adapter Type : AC/DC
- Maximum DC Current : 30A
- Maximum AC Current : 30A ac
- Best Accuracy : ±1% + 2 mA
- Resolution : 1 mA
- Maximum Conductor Size : 25mm
- Safety Category : CAT III 300 V
- Output Type : Current
- Connector Type : 4 mm Plug
- Battery Type : 9V
- Battery Life : 30 h
- Cable Length Ext***ed : 1.5m
- Maximum Operating Temperature : +50°C
- Minimum Operating Temperature : 0°C
- Safety Category Voltage : 300V
- CODE No.:705-1894
