laboratoryinstruments
63-8456-91 Innova S44i, cooled S44I010006
Product Description
Product Model: 63-8456-91Product Brand: Eppendorf AG Fe […]
Contact Us
Product Details
Product Model: 63-8456-91
Product Brand: Eppendorf AG
Features
- The Innova Incubator Shaker Series has been ***d by researchers around the world for more than 50 years. With its high reliability intact, Innova S44i delivers new technologies and innovations that go a step further.
- Capacity
- The largest capacity in the history of Innova incubator shaker.
- By expanding the platform area by 35% *, the number of samples that can be loaded has increased dramatically.
- The shaker itself can be stacked up to three levels, maximizing the limited lab space.
- * Compared to previous Innova 44/44R
- Ease of ***
- The touch panel display also displays work logs and data graphs.
- You can export logs and data via a USB flash drive.

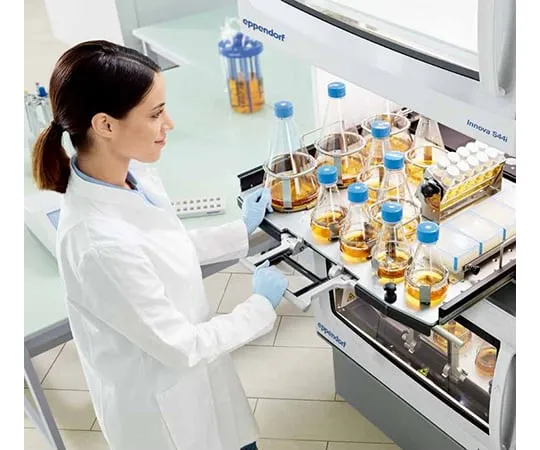

- The Quick Release platform allows you to pull out samples by simply gripping the handle, making it easy to load and unload samples.
- Stability
- The X-drive, which is the first of its kind, is a robust drive unit that can withstand high loads while maintaining low noise and vibration.
- The new Balance Master feature enables you to achieve optimal shaking regardless of the amount of weight loaded.
- As a result, it is possible to operate without limitation of rotation speed even when the main body is stacked.
- Accessories: Stable, Safe, Variations
- A large number of accessories are available for stable operation and high versatility.
- Positioning base: For stable and safe operation, a positioning base must be installed between the floor and the Innova S44i.
- Window shade: Blocking light energy from the outside contributes to more reproducible data acquisition.
- Other accessories: A wide range of products such as flask clamps, plate holders and tube blacks.
- Save Your Space: Best results in the least amount of space
- The height of the base, the number of Innova S44i units, and the combination of Innova 44/R can be stacked as follows:
- Why So Stable? : X-Drive Himitsu
- Do you know why the incubator shaker rocks? The Innova S44i includes new features to reduce vibration and noise.
- Five-axis drive unit: The pivot axis of the drive unit that supports the weight of the load. The X-Drive can handle very heavy loads with five axes arranged in an "X" shape.
- Movable counter balance: When using the centrifuge, insert the balance tube on the opposite side of the sample. This balance is also essential for incubator shakers. The two-part Innova S44i has a movable counterbalance that can be adjusted to suit the load.
Spec
- Temperature range: ambient temperature minus 20 degrees Celsius to 80 degrees Celsius, but minimum set temperature = 4 degrees Celsius
- Temperature Precision: ± 0.1 °C (at 37 °C)
- inside temperature uniformity : ± 0.25 °C (37 °C , 250 in rpm)
- Rail Diameter: 2.5 cm
- Turning Speed *: 20 -400 rpm
- Maximum load (on platform): 35.4 kg
- Installation size (WxDxH cm, No Body Stacking):
- When using a 10.5 cm base: 118.2 x 95.8 x 75.1
- When using a 30.7 cm base: 118.2 x 95.8 x 95.3
- Platform Size (WxD, cm): 76.2 x 62.0
- Body Weight: 198 kg
- program settings: possible
- Warranty: 3 years
- *Max rotation speed is different when installed on top of Innova 44/44 R.
- 2 stages : 300 rpm , 3 stages : 250 rpm
