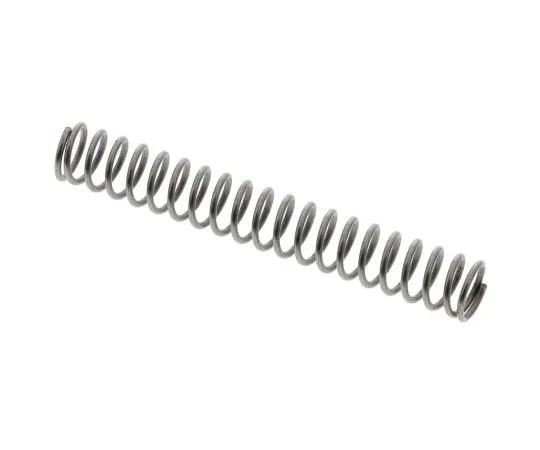

63-4654-95 RS PRO Stainless Steel Compression Spring, 25.5mm x 3.6mm, 0.36N/mm 821-295
Product Description
Product Model: 63-4654-95Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4654-95
Product Brand: RS PRO
Features
- Material conforms to DIN 17224 No. 1, 4310 or BS2056 EN58A. The load at the minimum operating length is the load required to compress the spring to its length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Stainless Steel Compression Springs
- Termination is perp***icular to the length and unpolished appearance: Brown/Bronze right hand roll
Spec
- Outside Diameter:3.6mm
- Wire Diameter:0.4mm
- Free Length:25.5mm
- Minimum Working Length:10.6mm
- Load at Minimum Working Length:5.31N
- Material:Stainless Steel
- Spring Rate:0.36N/mm
- Ends:Closed (Square)/Unground
- CODE No.:821-295
