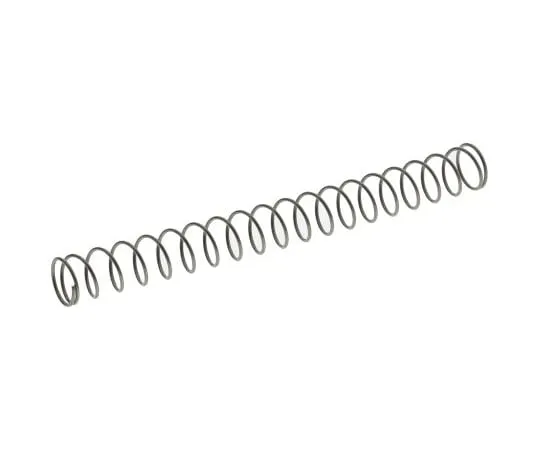

63-4654-94 RS PRO Stainless Steel Compression Spring, 41.9mm x 4.32mm, 0.08N/mm 821-289
Product Description
Product Model: 63-4654-94Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4654-94
Product Brand: RS PRO
Features
- Material conforms to DIN 17224 No. 1, 4310 or BS2056 EN58A. The load at the minimum operating length is the load required to compress the spring to its length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Stainless Steel Compression Springs
- Termination is perp***icular to the length and unpolished appearance: Brown/Bronze right hand roll
Spec
- Outside Diameter:4.32mm
- Wire Diameter:0.32mm
- Free Length:41.9mm
- Minimum Working Length:9.5mm
- Load at Minimum Working Length:2.57N
- Material:Stainless Steel
- Spring Rate:0.08N/mm
- Ends:Closed (Square)/Unground
- CODE No.:821-289
