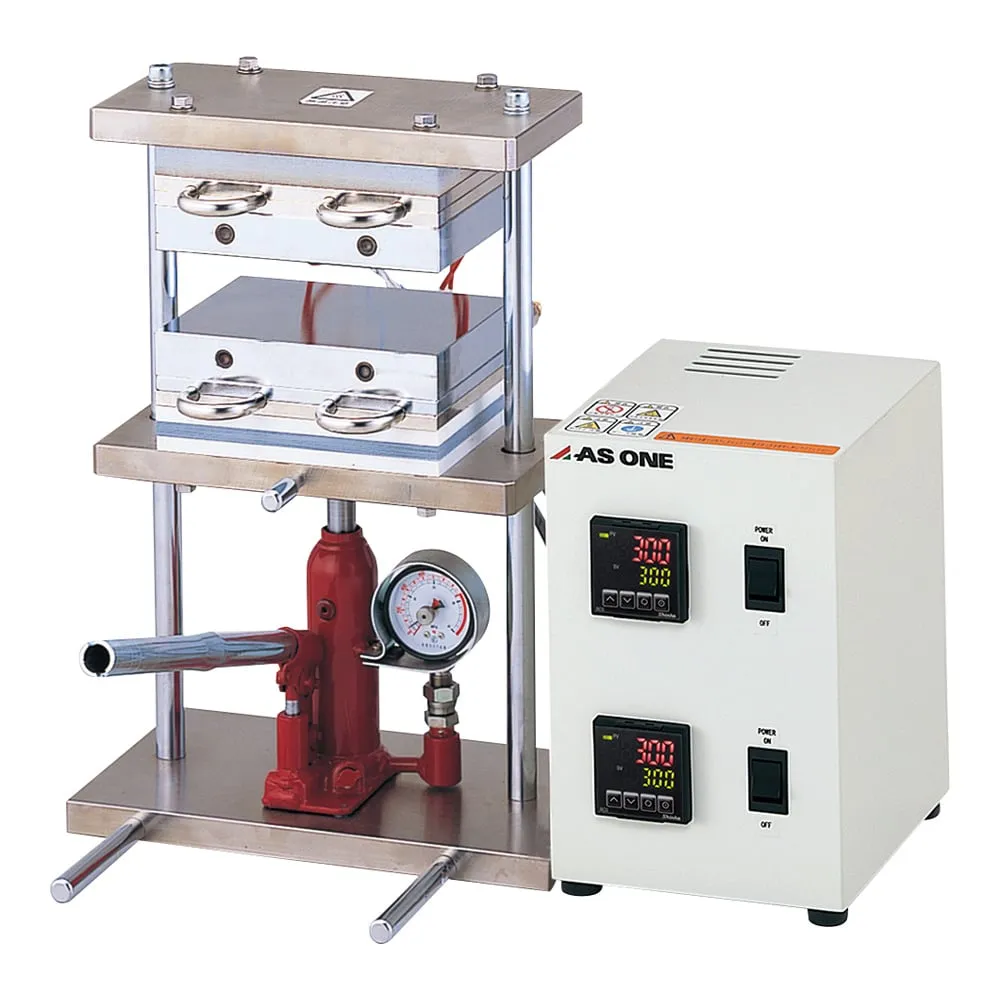

2-8157-11 Small Heat Press Machine (With Cooling Function) 0 - 1T HC300-01
Product Description
Product Model: 2-8157-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-8157-11
Product Brand: AS ONE Corporation
Features
- Heat press machine with cooling function convenient for molding work.
- After heating and molding, cooling water and tap water can be circulated to cool samples and molds.
- It is possible to set the temperature of the upper and lower heat plates respectively.
- Resin sheets and molded samples can be produced.
- Heated compression molding test of various materials is available.
- It is operated by hydraulic pressure, so it can be weighted easily.
- The pressure gauge is a two-needle retention type, so you can check the weighted pressure.
Spec
- Model number: HC300-01
- Weighted (t): 0 - 1
- Size (mm): 495 x 430 x 500
- Weight (kg): Approx 63
- Hot plate size: 200 x 150mm
- Hot plate stroke: 0 - 90mm
- Heating temperature: Highest temperature 300℃
- Heater capacity: 660W/heating plate x 2 sheets
- Temperature adjustment: PID type
- With pressure gauge left needle, analog display
- Power supply: 100VAC 50/60Hz
- Power cord length: 2.5m (with 3P plug)
- *This product is water cooling type, but the machine itself cannot cool down . Please *** by circulating tap water or cooling water.
- *it cannot hold pressure for long hours.
- *Pressure is recomm***ed for *** in 50% or more of the largest value.
*This product might require extra fees.
