Features

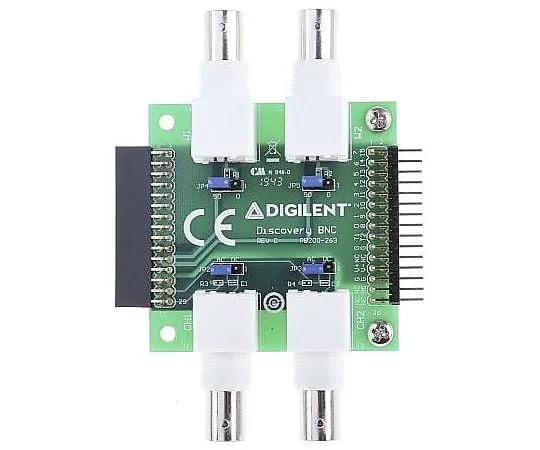

• Discovery 2 Kit: Project box, USB cable, 2 x 15 flywire signal cable assembly, 5-pack of 6-pin male headers, ferrite cable snap-on. Discovery 2 USB PC Multi-Function Instrument. The Analogue Discovery 2 is a USB oscilloscope and multi-function instrument that allows ***rs to measure, generate, record and control mixed-signals of all kinds. The optional Discovery BNC Adapter Board provides standard BNC probe connections. Discovery 2 is aimed at engineering students, hobbyists and electronics enthusiasts who can download tutorials and other information from: https://reference.digilentinc.com/reference/instrumentation/analog-discovery-2/start. 2-channel PC USB 14-bit 100Msps Digital Oscilloscope 2-channel 14-bit 100Msps Arbitrary Function Generator Stereo audio headphone/speaker amplifier 16-channel 100Msps Digital Logic Analyzer 16-channel 100Msps Pattern Generator 16-channel Virtual Digital I/O including buttons, switches and LEDs 2 x I/O Digital Trigger signals for linking multiple instruments Single-channel AC/DC Voltmeter Network Analyzer: 1Hz to 10MHz Bode, Nyquist, Nichols transfer diagrams Spectrum Analyzer: Power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.) Digital Bus Analyzers for SPI, I²C, UART and Parallel ports 2 x Programmable Power Supplies (0 to +5V, 0 to -5V) WaveForms 2015 (Mac, Linux and Windows Compatible) software. RS Product Codes. 134-6480 134-6480 410-321 Analogue Discovery 2 Instrument Kit 134-6460 134-6460 410-263 Analogue Discovery BNC Adapter Board
