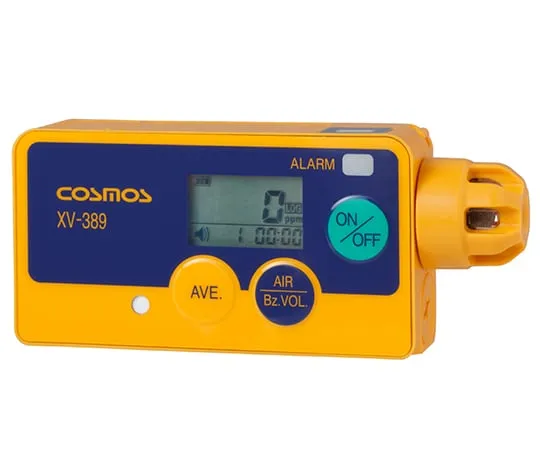

63-4200-35 Individual Exposed Concentration Meter XV-389
Product Description
Product Model: 63-4200-35Product Brand: New Cosmos Elec […]
Contact Us
Product Details
Product Model: 63-4200-35
Product Brand: New Cosmos Electric Co., Ltd.
Features
- Measurement can be made in accordance with the "Guidelines for the Measurement of Personal Exposure to Chemical Substances" (established by the Japan Society for Occupational Health).
- Check exposure status at a glance with a tr*** graph (using the optional log data collection set).
- Target substances can be selected from among 17 chemical substances, including toluene. When the airborne concentration of the selected substance reaches the warning level (TWA, STEL), a buzzer or lamp notifies the ***r.
- Instantaneous, average, TWA (time weighted average), and STEL (short time exposure limit) values of airborne concentrations of chemical substances can be checked in real time.
- Compact and lightweight (H40 x W94 x D20 mm, approx. 62 g*), so it does not interfere with work. Excluding protruding parts and the weight of the battery.
- *This product ***s a highly sensitive gas sensor to measure and record the airborne concentration of chemical substances in gas form.
- Ideal for risk assessment of organic solvents and specified chemical substances.
Spec
- Gases: 17 Volatile Organic Compounds (VOC)
- 1 toluene, 2 xylene, 3 ethyl acetate, 4 n-butyl acetate, 5 ethanol, 6 methyl isobutyl ketone, 7 isopropyl alcohol, 8 methyl ethyl ketone, 9 butanol, 10 isobutyl alcohol, 11 acetone, 12 butyl cellosolve, 13 isobutyl acetate, 14 cyclohexane, 15 n-hexane, 16 dichloromethane, 17 ethyl acetate
- Calibration gas: Toluene
- Detection principle: Thermal linear semiconductor type
- Gas sampling system: Diffusion system
- Detection range: 0 ~ 500 ppm
- Instruction accuracy: within +/- 10% of full scale
- Display resolution: 1 ppm
- Alarm setting: (TWA values, STEL values) by gas type
- Alarm system: buzzer sounds, red light flashes, liquid crystal display, vibration (automatic return)
- For STEL alarms only, the alarm is automatically deactivated (automatically restored) when the gas concentration falls below the alarm level.
- Power supply: 1 AAA alkaline battery (LR03)
- Continuous usage time: About 30 hours
- Operating temperature and humidity range: -10 to + 40 degrees C 30 ~ 85% RH (However, no condensation)
- Protection rating: IP 52 equivalent
- Key features:
- Self-judgment (Sensor malfunction, body malfunction, battery dead, date and time set)
- AIR adjustment (zero adjustment), gas alarm (TWA alert, STEL alert)
- Gas concentration display (Instantaneous, Average, TWA, STEL)
- Data logging function (read data by NFC) * However, XV -389 L log data collection set (optional) is required
- Battery level indicator, LCD backlight
- Various settings (Buzzer volume, date, gas type, alarm function ON/OFF)
- Various tests (alarm, LCD display)
- Standard accessories: 1 AAA alkaline battery, safety pin adapter, sensor cover with filter
