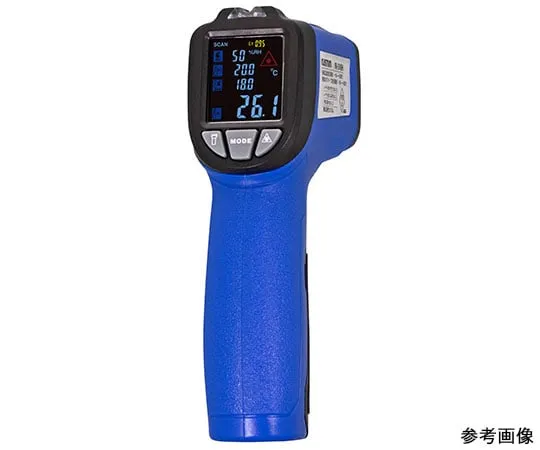

63-4171-81 Radiation Thermometer IR-310H
Product Description
Product Model: 63-4171-81Product Brand: CUSTOM corporat […]
Contact Us
Product Details
Product Model: 63-4171-81
Product Brand: CUSTOM corporation
Features
- Environmental temperature + humidity + dew condensation alarm can be measured.
- Condensation warnings are displayed in green, yellow, and red.
- It has a UV light function to react with fluorescent agents such as gas leak detection.
- Temperature can also be measured with a K-type thermocouple thermometer (sensor probe sold separately).
- With circular laser marker function.
Spec
- < radiation temperature >
- Measuring range: -50 to + 550 degrees C
- Resolution: 0.1 degrees C
- Accuracy of measurement: 0 to + 550 degrees C/+ 1.5% rdg or +/- 2 degrees C, whichever is greater, - 50 ~ 0 degrees C/+/- 3 degrees C
- Sampling time: About 2 times per second
- Emissivity setting: 0.10 ~ 1.00 (variable in 0.01 steps)
- Measuring Area: Distance: Measuring Diameter = 13: 1
- < K-Type Thermocouple Temperature >
- Measuring range: -50 to + 850 degrees C
- Resolution: 0.1 degrees C
- Accuracy of measurement: +/- 1.5% rdg or +/- 1.5 degrees C, whichever is greater.
- < Ambient temperature >
- Measuring range: 0 to + 50 degrees C
- Resolution: 0.1 degrees C
- Accuracy of measurement: 0 ~ 40 degrees C/+/- 1.0 degrees C, other than left/+/- 2.0 degrees C
- < Ambient humidity >
- Measuring range: 10 ~ 95% RH
- Resolution: 1% RH
- Measurement accuracy: 35 ~ 75% RH/+/- 3.0% RH, other than left/+/- 5.0% RH
-
- Measuring range: -20 to + 60 degrees C
- Resolution: 0.1 degrees C
- Accuracy of measurement: +/- 1.5 degrees C (+ 25 C, 40 ~ 80% RH)
- < General specifications >
- Operating temperature and humidity: 0 to + 50 degrees C, 10 ~ 95% RH (but no condensation)
- Storage temperature and humidity: -20 to + 60 degrees C, below 80% RH (However, no condensation, no batteries)
- Auto power off: about 50 seconds
- Power supply: 1 x 9V square battery (included for testing)
- Battery life: About 8 hours
- Dimensions: approx. W 46 x D 105 x H 160 mm
- Weight: approx. 235 g (battery included)
