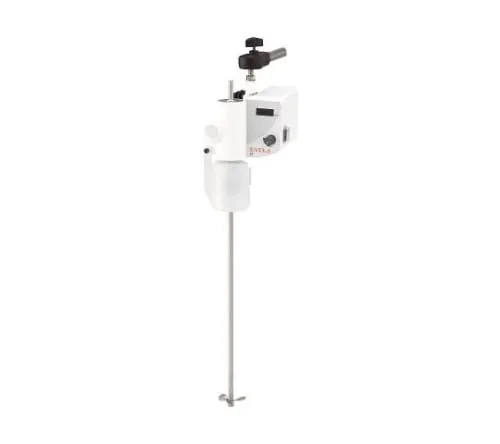

63-5193-98 Small agitator ZZ-1000S
Product Description
Product Model: 63-5193-98Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-5193-98
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- For loads greater than the maximum torque, a unique two-stage rotation control can be ***d to lower the rotation speed and stir.
- It is a small and very easy to operate agitator.
- The number of revolutions is shown digitally, so precise operation is possible.
- Beca*** it is a brushless motor, there is no generation of sparks and no hassle of carbon brush replacement due to friction.
- Air purge port is provided on the back of the unit.
- The pressure of the supply air prevents solvents, acids, and other substances from entering the mounting interior.
Spec
- Standard
- Speed range: 50 ~ 3000 rpm
- Maximum torque: 0.098/3000 N.m, 1/3000 kgf cm/rpm
- rotation control: speed feedback control
- Rotation speed setting/display: Volume setting/digital display 4-digit
- Safety features: Thermal protector, current limiting circuit, chuck cover
- Features included: Throw-up/down, freak lamp, air barge port
- Motor Rated Torque: DC Brushless Motor 35 W/0.098 N/m (1 kgf cm)/3000 rpm
- Stirring Bar Outer Diameter/Chuck Portion: phi 1 ~ 8/Drill Chuck
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 130 x 155 (172) x 158 (173) (362 D: When installing the freak lamp)/* Dimensions in () include projections.
- Weight: approximately 2.5 kg
- Power input/voltage: 2 A, 200 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Accessories: 1 Stirring Bar (phi 8 x 495 mm, made of SUS), 1 Stirring Blade Marine Type (50 mm in diameter, made of SUS), 1 Clamp, 1 Chuck Handle
- Code: 253160
