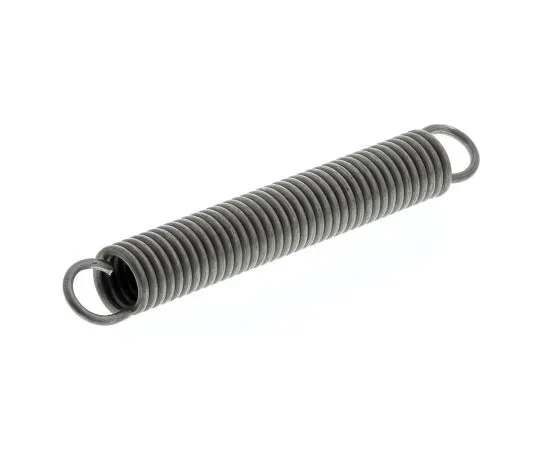

63-4653-32 RS PRO Steel Extension Spring, 44.1mm x 6.3mm 751-859
Product Description
Product Model: 63-4653-32Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4653-32
Product Brand: RS PRO
Features
- Material conforms to DIN17223 Class C or BS1408 CR3.
- Dimensions conform to DIN 2097 (grade 2). It has an oil finish.
- Piano Wire Tensile Spring
- A right-handed (clockwise) spiral spring and looped *** made of high extension strength piano wire.
- Features and Advantages: Absorbs and stores energy on both sides Resistance to tension Initial tension can be set according to individual requirements Coil spring resisting elongation Use: Interior and exterior garage door assembly Vise plier carburetor Trampoline cleaning equipment Agricultural machinery
Spec
- Material:Steel
- Free Length:44.1mm
- Maximum Ext***ed Length:73.80mm
- Outside Diameter:6.3mm
- Wire Diameter:0.9mm
- Initial Tension:37.1N
- Spring Rate:1.06N/mm
- CODE No.:751-859
