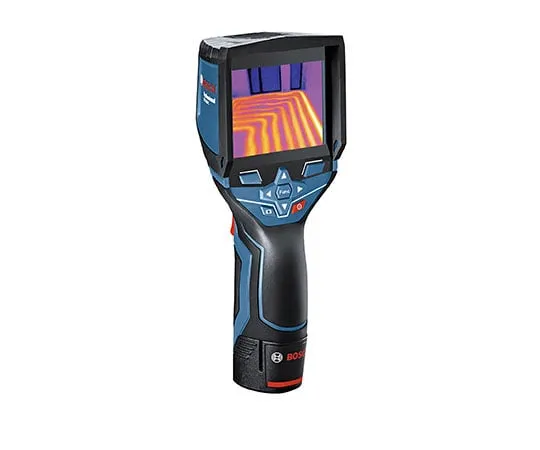

63-4049-05 infrared thermography GTC400C
Product Description
Product Model: 63-4049-05Product Brand: BOSCH Features […]
Contact Us
Product Details
Product Model: 63-4049-05
Product Brand: BOSCH
Features
- Maximum measurement temperature: 400°C.
- Has a large, easy-to-read 3.5 inch color LCD screen.
- With the best-in-class thermal image resolution, you can simply identify areas of abnormal temperature.
- Connect function allows reporting of measurement results.
- You can select a combination of images that are easy to see according to your work.
- With a micro USB port, data can be transferred to a PC and reports can be created with free software.
- The built-in WiFi function allows you to quickly transfer measurement images to a free app on your smartphone.
- In addition to AA alkaline batteries, Bosch Pro 10.8 V batteries (sold separately) can also be ***d.
Spec
- LCD (inch): 3.5 (color LCD)
- Thermal image resolution: 160 x 120
- Measuring viewing angle: 53 x 43 degrees
- Measurable range (distance m/surface temperature deg. C): 0.3 to/- 10 ~ 400
- Emissivity: 0.01 ~ 1.00 (variable)
- Spatial resolution (mrad): 6.0
- Operating temperature range (deg. C): -10 to + 45
- Storage temperature range (deg. C): -20 to + 70
- Power supply: 4 AA alkaline batteries, 10.8 VDC (with battery sold separately)
- Number of saved images in memory: 500
- Dustproof and waterproof performance: IP 53 (Drip-proof type, except battery mounting part)
- USB ports: 1.1
- Mass (kg): 0.54 (including batteries)
- Size (mm): (H) 233 x (W) 95 x D 63
- Inspection of electrical equipment (identification of defective parts of switchboards and solar panels, etc.)
- Diagnosis of a Building (Leakage diagnosis, poor insulation, etc.)
- Inspection of piping, air conditioning ducts, air conditioning equipment, etc.
- Includes: carrying back, micro USB cable, 4 AA alkaline batteries (for testing)
