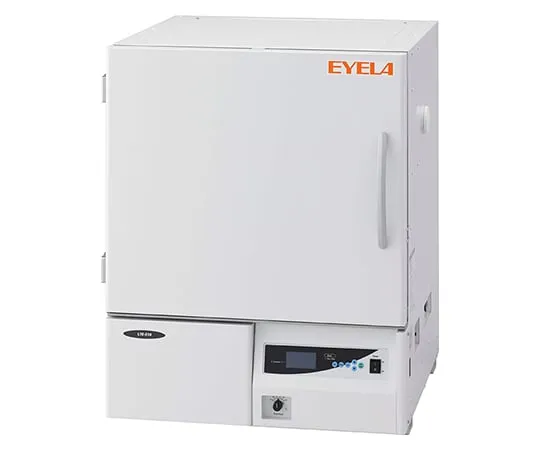

Spec

• Forced convection system
• Temperature adjustment range: - 10 ~ 60 degrees C
• Temperature control accuracy: Eco mode: +/- 1.5 degrees C (with refrigerator ON-OFF control), +/- 0.1 ~ 0.2 degrees C (with heater control), CONT mode: +/- 0.1 ~ 0.2 degrees C
• Temperature distribution (under heater control): Spatial temperature deviation of 1.5 deg. C or less, temperature gradient of 2.0 deg. C or less (at 37 deg. C)
• Temperature Control: ECO Mode: Refrigerator ON-OFF, CONT Mode: Heater P.I.D Control + Refrigerator Continuous Operation
• Defrosting features: auto defrost (auto/timer), manual defrost
• Timer function: Auto Start, Auto Stop, Auto Start + Auto Stop
• Program features: 1 step, 2 step program, 24 hour period program, temperature gradient (up to 8 steps)
• Safety features: Ground fault and overcurrent breaker, variable indep***ent overrise prevention device, door switch, refrigerator: high-pressure switch, overload relay (automatic return), service outlet: f***, condenser fan: temperature f***, internal blower fan: anti-burn circuit, temperature controller self-diagnostic function (Upper and lower temperature alarm, heater disconnection, sensor disconnection, power failure, watchdog, refrigerator high pressure abnormality, overheat, door alarm, temperature gradient failure, heater SSR failure)
• External Input/Output: Alarm Output Terminal: Non-Voltage Contact (a Contact) Output AC 250 V Max. 2 A
• Heater: 550 W
• Refrigerator/Refrigerant: Air-cooled output: 200 W/R 134 a
• Interior dimensions (width x depth x height): 600 x 500 x 500 mm
• Internal volume (L): about 150
• Shelf Board Load Capacity, Material, Attached Number of Sheets: Uniform Distribution Max. 15 kg/sheet, PE Coating 2 Sheets
• Shelf Pitch/Number of Racks: 30 mm/13 Racks
• Inner Door/Interior: Tempered Glass (1)/SUS 304 (Some SUS 430)
• Cable hole/Service outlet: 1 right side inside diameter 40 mm/2 mouth AC 100 V Max. 4 A
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (width x depth x height): 700 (808) x 730 (820) x 890 mm/* Dimensions in () include projections. Drainage tank frame included.
• Weight (kg): approximately 91
• Power input/voltage: 10 A, 1 kVA/100 VAC 50/60 Hz
• Code: 274400
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *Temperature control accuracy is the value of automatic defrosting (disabled) or above the set 25 degrees Celsius.
• *Performance notation for temperature distribution conforms to JIS C 60068 -3 -5 JTM K 07 -2007 (Performance test method and performance display method of temperature test tank, Japan Testing Machine Industry Association).
