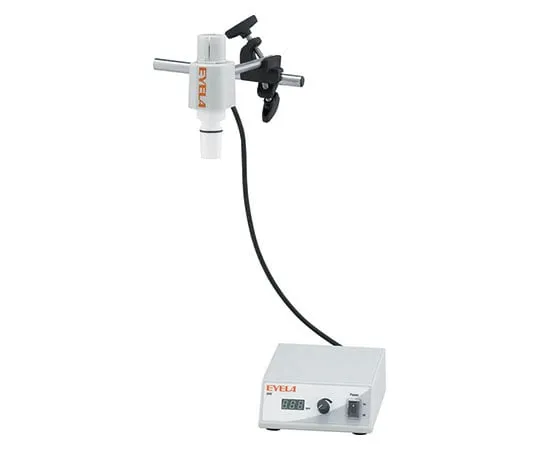

63-1396-83 Small agitator separate type SPZ-1000TS1525
Product Description
Product Model: 63-1396-83Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-83
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Agitator that can be attached directly to the container
- The agitator bar can be fixed by hand. There is no need to *** tools such as chuck handles.
- A coupling cover is provided as standard to prevent hair from being wound by the coupling.
Spec
- Speed range: 10 ~ 350 rpm
- Maximum torque: N, m/rpm/0.015/350, kgf, cm/rpm/0.15/350
- Reached vacuum: 399.9 Pa or less
- rotation control: open loop control
- Rotation speed setting/display: Volume setting/digital display 3 digits
- Safety features: overcurrent protection, coupling cover
- Includes: Slow Up, Down
- Recomm***ed container size: 50 ~ 300 mL
- Motor: Stepping motor
- Stirring rod and blade: sold separately
- Stirring bar outer diameter (mm): phi 4
- Mating: TS 15/25
- Wetted part material: Teflon (R), Viton
- Stirring bar seal, material: O-ring Viton
- Arbor diameter: phi 8 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions and weight: Operation/145 x 190 x 58 mm/approx. 0.8 kg, Drive/38 x 67 (212) x 132 mm/approx. 0.2 kg/* Dimensions in () include projections.
- Power input/voltage: 0.5 A 50 VA/100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Code: 260510
