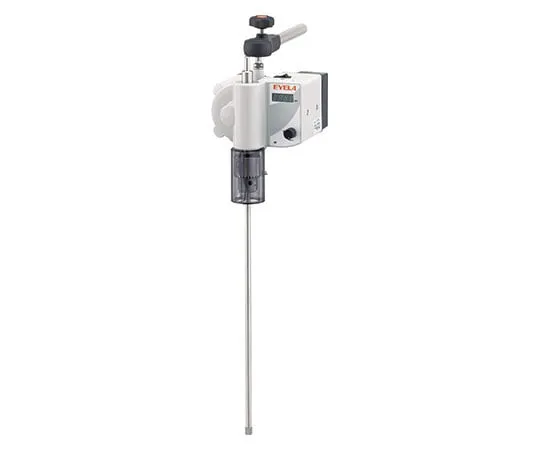

63-1396-76 Stirrer Stirrer Mazera Series ZZ-1000
Product Description
Product Model: 63-1396-76Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-76
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Versatile Agitator
- A unique two-step rotation control that maintains the set rotation by speed feedback control when the load is within the maximum torque, and reduces the rotation speed and keeps stirring when the load is above the maximum torque.
- Air barge opening is standard on the back of the main body. The pressure of the supply air increases the internal pressure of the agitator body to prevent the penetration of solvents, acids, etc.
Spec
- Standard
- Speed range: 50 ~ 3000 rpm
- Maximum torque: N, m/rpm/0.098/3000, kgf, cm/rpm/1/3000
- rotation control: speed feedback control
- Rotation speed setting/display: Volume setting/digital display 4-digit
- Safety features: Thermal protector, current limiting circuit, chuck cover
- Accessory features: Throw-up/down, freak lamp, air purge port
- Motor Rated Torque: DC Brushless Motor 35 W/0.098 N/m (1 kgf/cm)/3000 rpm
- Stirring Bar Outer Diameter/Chuck Portion: phi 1 ~ 8/Drill Chuck
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 130 x 155 (172) x 158 (173) mm (362 mm: when installing the freak lamp)/* Dimensions in () include projections.
- Weight: approximately 2.5 kg
- Power input/voltage: 2 A, 200 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *Accessories: 1 clamp, 1 chuck handle
- Code: 253150
