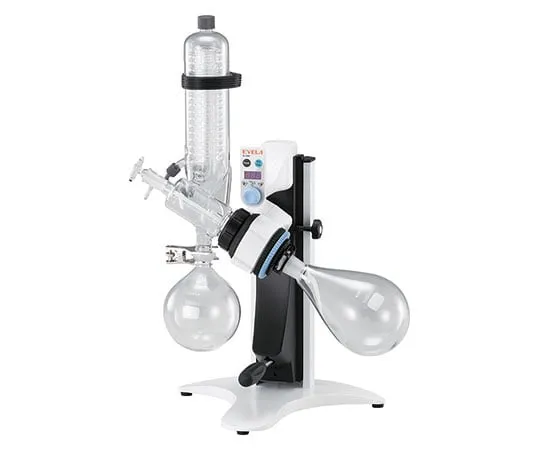

63-1396-65 Rotary Evaporator N-1300E
Product Description
Product Model: 63-1396-65Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-65
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- The height was reduced to 645 mm for *** in the draft chamber. Compact design that allows multiple units to be installed in the draft chamber.
- Flask rotation direction and automatic inversion can be performed by setting the operation section.
Spec
- No bus
- Speed range: 10 ~ 310 rpm
- Evaporation capacity: Max. 23 mL/min (water evaporation)
- Rotation setting and display: Encoder type dial setting and digital display
- Jack function: Manually balanced (180 mm, stepless adjustment)
- Motor for rotation: DC brushless motor
- E-Type glass set: adapter-integrated vertical double corrugated tube (cooling area: 0.117 m2), rotary joint (inner diameter: 18 x total length: 178 mm TS: 29/38), sample flask (eggplant type) 1 L (TS: 29/38), receiving flask (round bottom) 1 L (ball sliding: S: 35/20)
- Vacuum Seal: Teflon (R) + Teflon (R)/Viton Double Seal (Genuine parts: Vacuum seal 2 sets Product code No. 142610 Price: 11,500 yen)
- Connection diameter: Cooling water nozzle, exhaust nozzle, outer diameter 10 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 514 x 342 x 645 (825) mm
- Weight: 8.8 kg
- Power input/rated power: 1.1 A, 110 VA/100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius and rated supply voltage.
- *A vacuum pump, cooling water circulation system, etc. are required separately for ***.
- Code: 266490
