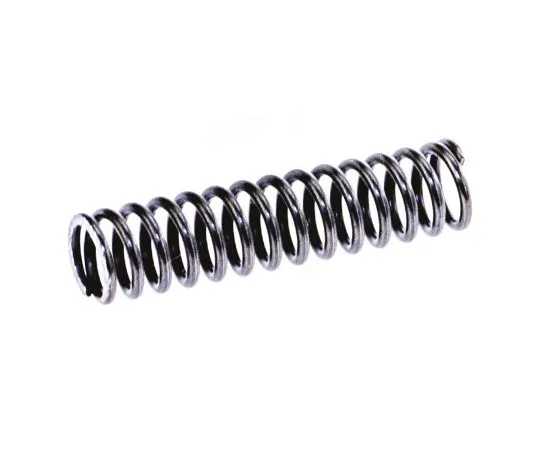

63-4653-12 RS PRO Steel Alloy Compression Spring, 30.5mm x 7.3mm, 3.26N/mm 751-578
Product Description
Product Model: 63-4653-12Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4653-12
Product Brand: RS PRO
Features
- The minimum effective length load is the load required to compress the spring to that length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Piano Wire Compression Spring
- End diameter is up to 0.8 mm, *** face is square, grinding *** diameter is 1.00 mm, and beyond that, *** face is square, grinding right-handed spiral
Spec
- Outside Diameter:7.3mm
- Wire Diameter:1mm
- Free Length:30.5mm
- Minimum Working Length:19.9mm
- Load at Minimum Working Length:34.13N
- Material:Alloy Steel
- Spring Rate:3.26N/mm
- Ends:Closed (Square)/Ground
- CODE No.:751-578
