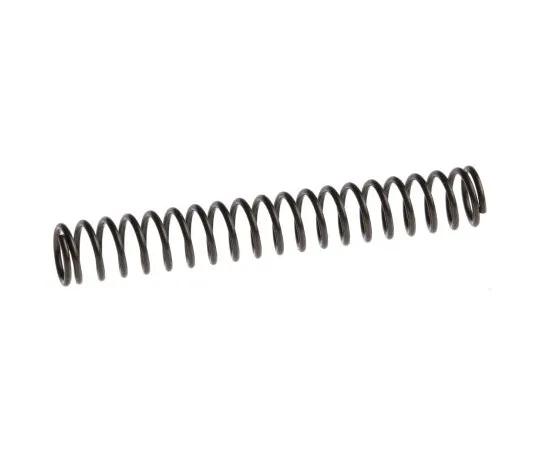

63-4653-05 RS PRO Steel Alloy Compression Spring, 38.5mm x 5.63mm, 0.7N/mm 751-499
Product Description
Product Model: 63-4653-05Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4653-05
Product Brand: RS PRO
Features
- The minimum effective length load is the load required to compress the spring to that length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Piano Wire Compression Spring
- End diameter is up to 0.8 mm, *** face is square, grinding *** diameter is 1.00 mm, and beyond that, *** face is square, grinding right-handed spiral
Spec
- Outside Diameter:5.63mm
- Wire Diameter:0.63mm
- Free Length:38.5mm
- Minimum Working Length:16.2mm
- Load at Minimum Working Length:15.49N
- Material:Alloy Steel
- Spring Rate:0.7N/mm
- Ends:Closed (Square)/Unground
- CODE No.:751-499
