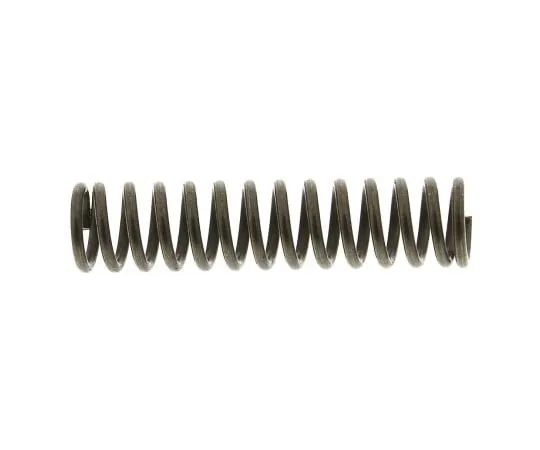

63-4653-04 RS PRO Steel Alloy Compression Spring, 20mm x 4.63mm, 2N/mm 751-483
Product Description
Product Model: 63-4653-04Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4653-04
Product Brand: RS PRO
Features
- The minimum effective length load is the load required to compress the spring to that length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Piano Wire Compression Spring
- End diameter is up to 0.8 mm, *** face is square, grinding *** diameter is 1.00 mm, and beyond that, *** face is square, grinding right-handed spiral
Spec
- Outside Diameter:4.63mm
- Wire Diameter:0.63mm
- Free Length:20mm
- Minimum Working Length:11.3mm
- Load at Minimum Working Length:17.16N
- Material:Alloy Steel
- Spring Rate:2N/mm
- Ends:Closed (Square)/Unground
- CODE No.:751-483
