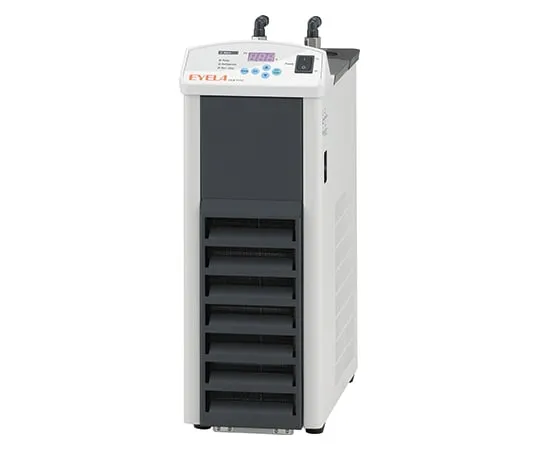

63-1396-45 Small cooling water circulator, Cool Ace CCA-1112A
Product Description
Product Model: 63-1396-45Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-45
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Small cooling water circulator
- With a temperature setting range of -20~30 degrees Celsius, it can be ***d in a variety of applications. With a compact footprint of 205 W x 405Dmm, it takes up no space when installed in the draft chamber, above, below or beside the laboratory table.
- The connection to the vacuum controller allows the rotary evaporator system peripherals to be interlocked. When the system stops operating, the circulating pump stops and stands by. While the unit is on standby, it periodically circulates to the piping while adjusting the temperature inside the tank, so it can be ***d immediately when operation resumes.
- This product complies with the RoHS Directive.
Spec
- Cooling/Circulation System: Air Cooled/Sealed System Directional Circulation
- Temperature setting range: - 20 ~ 30 C (without heater)
- Temperature control accuracy: +/- 2 degrees C (0 ~ 20 degrees C setting), +/- 1 degrees C (- 20 ~ 0 degrees C setting)
- Cooling capacity (at liquid temperature): 10 degrees C/450 W (387 kcal/h), -10 degrees C/310 W (266 kcal/h)
- External circulation capacity (50/60 Hz): maximum flow rate 9/10 L/min, maximum head 4.2/5.6 m
- Temperature control: Refrigerator ON-OFF control
- Temperature setting/display: Sheet key input/digital display, minimum digit 1 degree C
- Safety functions: Leakage/overcurrent breaker, refrigerator overload relay holding circuit, temperature controller self-diagnostic function (Refrigerator malfunction, power failure alarm, sensor malfunction), refrigerator protection timer, circulation pump impedance protection
- External input/output: Communication terminal for vacuum controller (for NVC -3000 type), communication terminal for evaporator (N -1210 B series)
- Refrigerator/Refrigerant: Air-cooled output: 450 W/R 404 A
- Cooling Coil: SUS 316 L
- External circulation nozzle: One-touch connector inner diameter 10 mm, one-touch hose nozzle outer diameter 10 mm
- Water Tank Materials, Dimensions (mm), Capacity: SUS 304, 130 W x 230 D x 115 H, Approx. 3.2 L (Liquid Capacity Approx. 2.7 L)
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 205 x 405 x 545 mm
- Power input/voltage: 8 A, 800 VA, AC 100 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *Cooling capacity is +/- 10% of display capacity.
- *The external circulation capacity is +/- 10% of the display capacity.
- *Pure water can not be ***d.
- Code: 268450
*This product might require extra fees.
