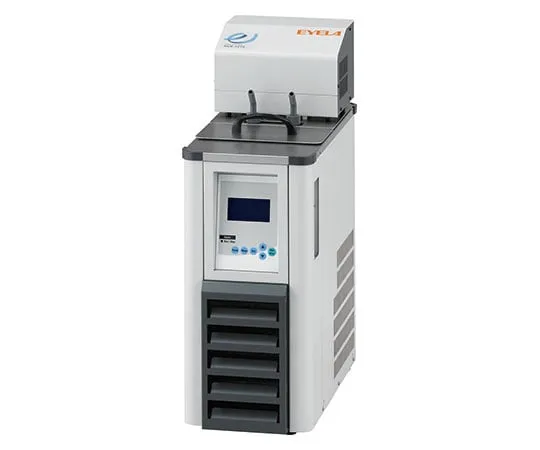

Spec

• Temperature adjustment range: - 30 ~ 95 degrees C
• Temperature control accuracy: below +/- 0.1 degrees C
• Cooling capacity (at 10 degrees Celsius): 180 W (154 kcal/h)
• External circulation capacity (50/60 Hz): maximum flow rate 4.5/5.0/min, maximum head 1.2/1.7 m
• Temperature control: P.I.D control, contactless zero-cross output
• Temperature setting/display: Sheet key input/digital display, minimum digit 0.1 degrees C
• Safety functions: Upper and lower temperature anomaly detection, water level drop, overshoot, control anomaly, sensor anomaly, high pressure switch, refrigerator overload relay, variable indep***ent overrise detector, leakage and overcurrent breaker
• Timer program function: Auto start, Auto stop step mode
• Included features: Auto-tuning, temperature display correction, power outage return settings
• External input/output: PC communication (RS -232 C synchronous serial communication), external temperature sensor terminal, recorder output terminal, alarm output terminal (No-Voltage a Contact Rating: 250 VAC Max. 3 A)
• Heater: 500 W (SUS 316 L)
• Refrigerator/Refrigerant: Air-cooled output: 300 W/R 507 A
• Tank Stirring: Jet Stirring
• Cooling Coil: SUS 316 L
• Tank Lid: SUS 304
• Temperature sensor: Platinum temperature resistor Pt 100 ohm
• Outboard Circulation Nozzle: Both Outlet and Return Outlets 11 mm Outside Diameter Hose Outlet
• Recorder output range: 1 ~ 4 VDC (- 40 ~ 110 deg. C)
• Water tank material: SUS 304
• Tank Inside Dimensions (mm), Capacity: 140 W x 260 D x 150 H, Approx. 4 L
• Effective dimensions in tank (mm): 110 W x 80 D x 130 H
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions: 210 (225) x 433 (530) x 600/* Dimensions in () include projections.
• Weight: 32 kg
• Power input/voltage: 12 A, 1.2 kVA/100 VAC 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *Dep***ing on the conditions, the refrigerator may be turned ON/OFF around the set temperature of 40 ~ 65 degrees Celsius, which may reduce the temperature adjustment accuracy.
• *The temperature adjustment range is - 20 ~ 95 degrees Celsius when the operating ambient temperature is 30 degrees Celsius or more.
• Code: 266650
