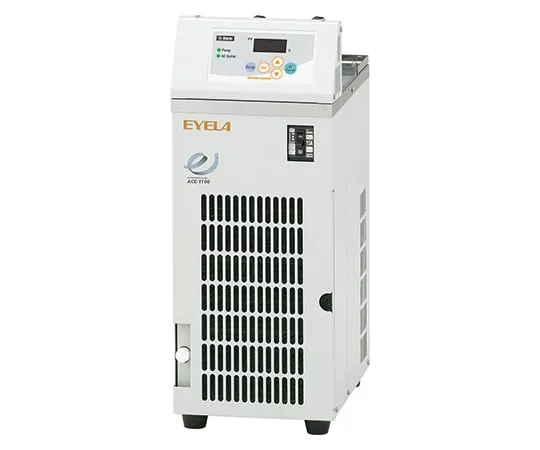

Spec

• Sealed system counter circulation
• Cooling system: Air cooled by radiator
• Temperature setting range: Circulating water temperature from room temperature to room temperature + 5 degrees C (radiator outlet)
• Cooling capacity (at liquid temperature): Radiator heat exchange capacity 100 W
• External circulation capacity (50/60 Hz): maximum flow rate 5.0/5.8 L/min, maximum head 3.9/5.4 m
• Safety functions: Leakage/overcurrent breaker, temperature controller self-diagnosis function, forced shutdown of heating source, f*** for service outlet, circulating pump impedance protect, float water level drop detection
• Usable reaction vessel capacity: up to Max. 1 L
• Circulable Gym Funnel Tube Length: Max. 200 mm
• External circulation nozzle: One-touch connector inner diameter 10 mm, one-touch hose nozzle outer diameter 10 mm
• Service outlet: Max. 10 A for heating source
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions: 185 x 260 x 460 mm
• Weight: approximately 13 kg
• Power input/power supply voltage 1 A, 100 VA/AC 100 V 50/60 Hz
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *Cooling capacity and external circulation capacity are plus or minus 10% of display capacity. The cooling capacity is the value at the time of circulation of the Jimro cooling channel (200 mm tube length).
• *Power input is a value that does not include the capacity of the service outlet.
• *Pure water can not be ***d.
• Code: 253120
