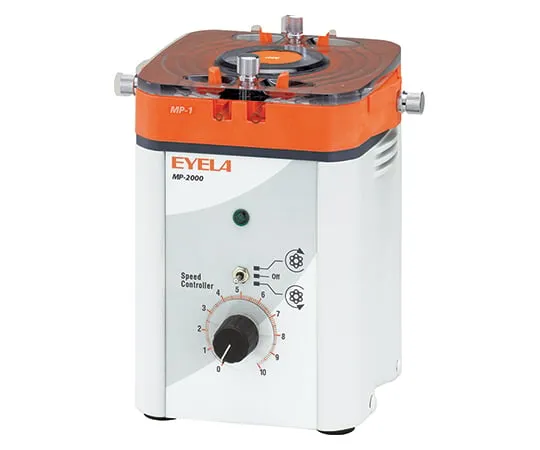

63-1396-17 Quantitative fluid pump MP-2001
Product Description
Product Model: 63-1396-17Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-17
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Spring type tube case type with reduced tightening adjustment. • Stoppers at both ***s of the tube case have a locking mechanism. The tube can be easily moved and changed since it can be locked at the time of setting.
- High discharge accuracy and excellent flow rate repeatability. It is also suitable for feeding a small amount of liquid.
- The direction of rotation for forward and reverse rotation is illustrated and can be easily switched by a single switch.
- * 2 tubes with an outer diameter up to 3~6.1 mm can be connected, and the liquid can be fed to 2 or 4 places simultaneously.
Spec
- Standard
- Spring Type
- Flow rate range: 10 ~ 1450 mL/h x 2
- Flow rate accuracy: +/- 2% (repeatability: +/- 1%)
- Maximum discharge pressure: 98 kPa (1 kg/cm 2)
- Maximum suction pressure: 9.8 kPa (0.1 kg/cm 2)
- Liquid viscosity/temperature: Max. 2 Pa/s (2000 cP) 0 ~ 60 deg C (non-freezing)
- rotation settings: volume settings
- Liquid feeding direction: forward/reverse switchable
- Motor: AC speed control induction motor Output 15 W
- Driving circuit: Speed feedback control
- Tube case: PET resin
- Safety features: Thermal protector
- Number of tubes: 2
- Number of tube case stages: 1 stage (can be increased up to 2 stages)
- Usable tube materials: Silicon, Tygon (R), Versilon (Fullan (R)), Pharmed (R),
- Usable tube diameter: outer diameter 3 ~ 6.1 mm
- Operating ambient temperature range: 0 ~ 40 degrees Celsius (noncondensing)
- External dimensions: 127 (166) x 130 (152) x 177 (190) mm/* Dimensions in () include projections.
- Weight: 3 kg
- Power input/voltage: 0.4 A, 40 VA/AC 100 V 50/60 Hz
- *Performance is based on room temperature of 20 degrees Celsius, rated power supply voltage, water, liquid temperature of 18 degrees Celsius, back pressure of 0, and silicon tube.
- *Tubes sold separately. Performance such as flow rate and discharge pressure varies slightly dep***ing on the tube ***d.
- Code: 251290
