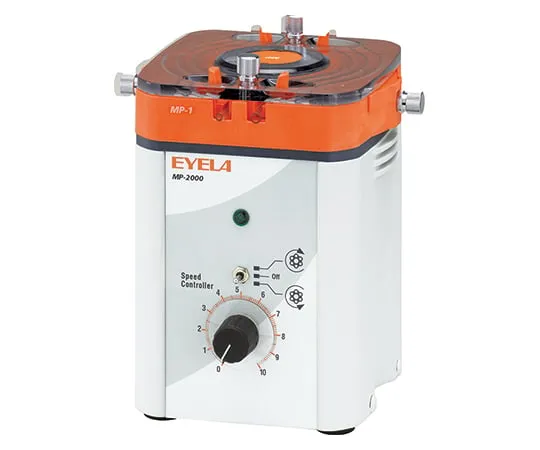

63-1396-13 Quantitative fluid pump MP-2010
Product Description
Product Model: 63-1396-13Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-13
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Standard Tube Pump, Stable Flow Rate
- Roller set is integrated and easy to attach and detach.
- The stopper at both ***s of the tube case has a locking mechanism. The tube can be easily moved and changed since it can be locked at the time of setting.
- High discharge accuracy and excellent flow rate repeatability. It is also suitable for feeding a small amount of liquid.
- The liquid can be delivered to 2 or 4 places simultaneously by 2 routes.
Spec
- Low Flow
- Variable screw type
- Flow rate range: 0.5 ~ 72.5 mL/h x 2
- Flow rate accuracy: +/- 2% (within +/- 1% repeatability)
- Maximum discharge pressure: 196 kPa (2 kg/cm2)
- Maximum suction pressure: 9.8 kPa (0.1 kg/cm 2)
- Liquid viscosity and temperature ***d: Max. 2 Pa/s (2000 cP)/0 ~ 60 deg.
- rotation settings: volume settings
- Liquid feeding direction: forward/reverse switchable
- Motor: AC speed control induction motor Output 15 W
- Driving circuit: Speed feedback control
- Tube case: PET resin
- Safety features: Thermal protector, f***
- Number of tubes: 2
- Number of tube case stages: 1 stage (can be increased up to 2 stages)
- Usable tube materials: Silicon, Tygon (R), Versilon (Fullan (R)), Pharmed (R)
- Usable tube diameter: outer diameter 3 ~ 6.1 mm
- Operating ambient temperature range: 0 ~ 40 degrees Celsius (noncondensing)
- External dimensions: 137 (166) x 145 (164) x 177 (190) mm/* Dimensions in () include projections.
- Weight: approximately 3.2 kg
- Power input/voltage: 0.4 A, 40 VA/AC 100 V 50/60 Hz
- *Performance is based on room temperature of 20 degrees Celsius, rated power supply voltage, water, liquid temperature of 18 degrees Celsius, back pressure of 0, and silicon tube.
- *Tubes sold separately. Performance such as flow rate and discharge pressure varies slightly dep***ing on the tube ***d.
- Code: 251300
