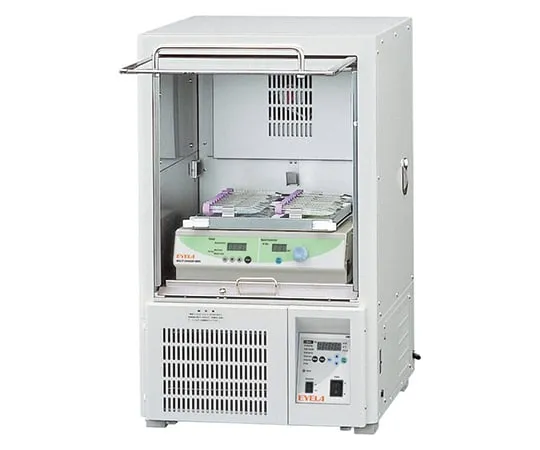

63-1396-08 Low temperature chamber for shaker FMC-100
Product Description
Product Model: 63-1396-08Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-08
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Low temperature constant temperature chamber with built-in refrigerator and program operation
- Open type shaker can be installed and ***d as low temperature constant temperature shaker. It can be ***d up to the main culture of a large Erlenmeyer flask from a pre-culture using a centrifuge tube. It can be ***d as an incubator without installing a shaker.
- Since it is equipped with a small powerful refrigerator, stable temperature can be obtained in the range of 4~50°C. A shaker is installed in the wareho*** and can be ***d for shaking culture from low temperature to constant temperature.
Spec
- Forced convection system
- Temperature adjustment range: 4 ~ 50 degrees C
- Temperature control accuracy: +/- 0.2 degrees C
- Temperature distribution accuracy: +/- 1.4 degrees C
- Temperature control system/Temperature sensor: Refrigerator + microcomputer P.I.D control/Platinum temperature measuring resistor Pt 100 ohm
- Temperature setting system: sheet key input/digital display
- Programs: Step, Autostart Stop
- Safety features: Leakage/overcurrent breaker, overheat prevention thermostat, door switch, f*** (for service outlet), temperature controller safety device (Sensor disconnect/short circuit, upper temperature warning)
- Heater: Stainless steel sheath heater 600 W
- Refrigerator/Refrigerant: Air-cooled 160 W/R 134 a
- Interior dimensions: 425 x 430 x 455 mm
- Installable shaker dimensions: Up to 400 x 340 mm
- Internal Effective Height: 455 mm
- Internal outlet: 1, Max. 2A (temperature controller interlocking)
- Cable hole: inner diameter 36 mm
- Shelf: Interior space installation type (optional)
- Fluorescent: 10 W internal overhead type (optional)
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 495 x 585 x 810 mm
- Weight: approximately 74 kg
- Power input/voltage: 9.3 A/100 VAC 50/60 Hz
- *Performance is based on room temperature of 20 degrees Celsius, rated power supply voltage, 50 Hz, and 16 and 37 degrees Celsius settings.
- *The maximum shakable speed is 400 rpm.
- Code: 195240
