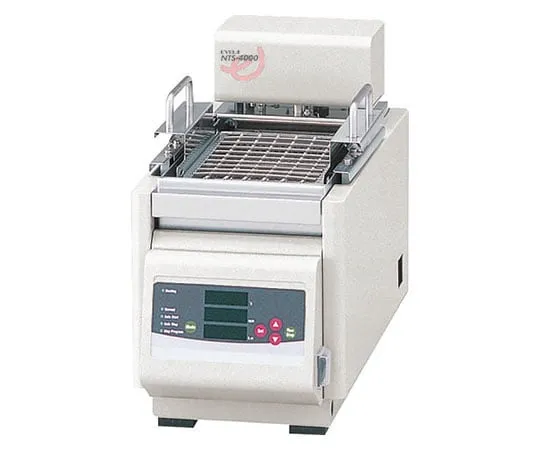

63-1396-02 Constant temperature shaking tank Unithermo shaker NTS-4000AM
Product Description
Product Model: 63-1396-02Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1396-02
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Constant Temperature Shaking Water Tank Achieves Quiet Operation and Excellent Durability • A newly designed shaking mechanism enables quiet operation (55dB or less).
- The temperature, shaking, and time settings are easy to operate all at once. Since each item is managed, both temperature control and shaking are safely stopped in case of abnormality. It also has a function to add up the shaking time by digital setting and display.
Spec
- Reciprocating shaking
- Temperature Setting Range/Adjustment Accuracy: Within 10 ~ 80 degrees Celsius/0.1 degrees Celsius (at 37 degrees Celsius)
- Shaking speed and amplitude: 20 ~ 180 rpm (feedback control), 25 mm
- Temperature adjustment range: room temperature + 5 ~ 80 degrees C
- Temperature control: P.I.D control, auto-tuning function
- Temperature setting and display: Sheet key input, minimum setting digit 0.1 degrees, digital setting and display
- Shake setting and display: Sheet key input, 0 ~ 180 rpm (minimum setting 1 rpm), Digital setting and display
- Time settings and displays: Sheet key input, 0 ~ 99 hours and 59 minutes (1 minute minimum setting), Digital settings and displays (1 ~ 9999 hours cumulative timer)
- Timer program function: Auto start, Auto stop, Step program
- Safety features: Self-diagnostic function (Heater break, sensor error, upper/lower temperature alarm, shaking motor error), float type dry cooking prevention, indep***ent overrise prevention (fixed), leakage/overcurrent breaker, f***
- Included features: temperature correction, auto tuning, alarm buzzer, power outage detection
- Sensor: Platinum thermometer resistor Pt 100 ohm
- Heater: 700 W (SUS 316 L)
- Shaking motor: Induction motor 25 W
- Tank Stirring: Jet Stirring
- Shaking basket (mm): shelf outer frame dimensions 150 x 220, shelf inner frame effective dimensions 130 x 199, 2 spring shelves + bottom plate, shelf top to maximum bottom plate depth 95
- Water tank material, dimensions: stainless steel plate, 168 x 368 x 140 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 220 x 490 x 342 mm
- Weight: approximately 18.5 kg
- Power input: 7.5 A 750 VA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load. However, the operating ambient temperature range is 20 +/- 5 degrees Celsius.
- Code: 211860
