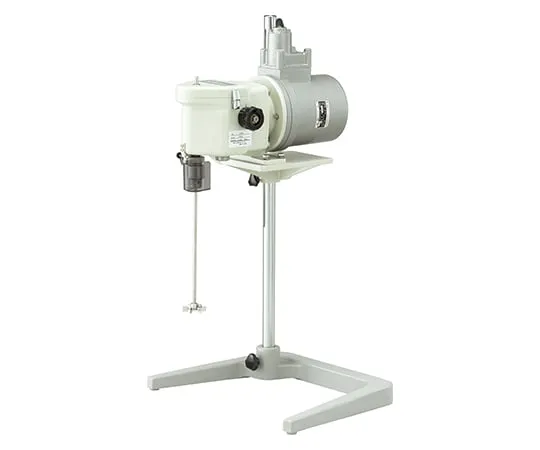

63-1395-99 Pressure and explosion-proof agitators B-200G
Product Description
Product Model: 63-1395-99Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-99
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- High torque, wide range of rotation speed, pressure-proof and explosion-proof type
- A pressure-proof and explosion-proof motor approved by the Fire and Disaster Management Agency is ***d. - The pressure-proof and explosion-proof standard is compatible with d2G4 and can be ***d safely except for some substances such as carbon disulfide and acetylene.
- The high power induction motor gear is decelerated, which results in low speed rotation.
- It is designed to provide high torque over the entire speed range. Exhibits power in high-viscosity stirring experiments.
Spec
- Pressure and blast proof base reference: d2G4
- Rotation speed range (rpm): 7 to 1360/50 Hz, 8 to 1640/60 Hz
- Speed setting: 20 speed changes (by changing gears and switching 4 dials)
- Safety features: Chuck cover
- Motor: Pressure and Explosion Proof 200 W
- Base: 500 x 340 mm
- Stirring Bar Outer Diameter/Chuck Section: 1 ~ 10/Drill Chuck (SUS)
- Jack stroke: 400 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: Body 175 (365) x 406 x 342 mm (Stand height 815)/* Dimensions inside () include projections.
- Mass: Body approx. 18 kg, Jack 6.5 kg, Base 7 kg
- Power input. Power supply voltage: 2 A, 700 VA/AC 200 V, 3-phase 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage and no load.
- *Power cable and plug not included.
- *Accessories: 1 Stirring Bar (Phi8 x 495 mm, SUS 304), Stirring Blade: 1 (Flat blade turbine, blade diameter phi 50 mm, SUS 304)
- Code: 121040
