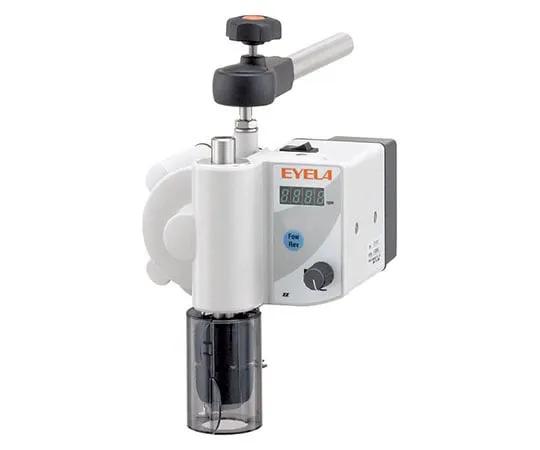

63-1395-91 Stirrer (Stirrer) Magella Series ZZ-1010
Product Description
Product Model: 63-1395-91Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-91
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Stirrer equipped with inversion function
- Two types for various scenes
- A unique two-stage rotation control that maintains the set rotation by speed feedback control when the load is within the maximum torque, and reduces the rotation speed and keeps stirring when the load is above the maximum torque.
- Air barge opening is standard on the back of the main body. The pressure inside the agitator body is higher than the external pressure due to the supply air pressure, preventing the infiltration of solvents and acids.
Spec
- Rotational speed range: 50 ~ 3000
- Maximum torque: N, m/rpm/0.098/3000, kgf, cm/rpm/1/3000
- rotation control: speed feedback control
- Rotation speed setting/display: Volume setting/digital display 4-digit
- Safety features: Thermal protector, current limiting circuit, chuck cover
- Accessory features: Throw-up/down, freak lamp, air purge port
- Reverse function: Reverse direction switch
- Motor Rated Torque: DC Brushless Motor 35 W/0.098 N/m (1 kgf/cm)/3000 rpm
- Stirring Bar Outer Diameter/Chuck Portion: Phi8 (Standard)/Collet Chuck
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 130 x 155 (172) x 158 (173) (362 D: When installing the freak lamp) mm/* Dimensions in () include projections.
- Mass: About 2.5 kg
- Power input/voltage: 2 A, 200 VA/AC 100 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Code: 253310
