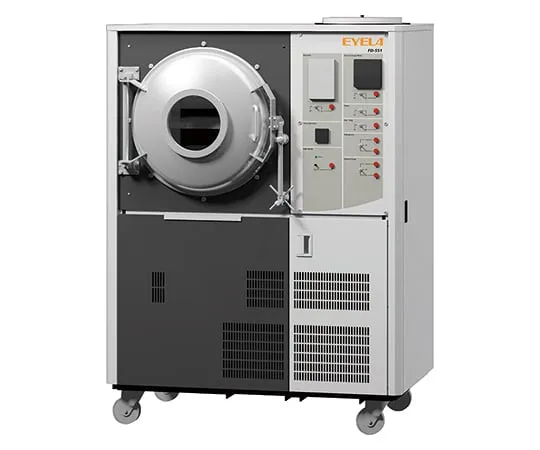

63-1395-63 Shelf freeze-dryer FD-551
Product Description
Product Model: 63-1395-63Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-63
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Since the drying shelf can be both cooled and heated, the sample container can be pre-frozen and freeze-dried simply by setting it on the shelf.
- Both cooling and heating of the shelf are heat medium circulation type. Compared to heater heating and cooling piping systems, uniform temperature distribution can be obtained.
- There is no heater part on the shelf, so you don't have to worry about a ground fault even if you wash the shelf with water.
Spec
- Refrigerant circulation system
- Trap cooling temperature: -45 degrees C
- Dehumidification: 10 L/dose
- Pre-freezing tank temperature: -30 degrees C
- Reached vacuum: 6.67 Pa
- Drying shelf temperature adjustment range: - 10 ~ 40 deg.
- Drying shelf temperature setting/display: Liquid expansion thermostat/digital display (minimum display: 1 degree Celsius)
- Safety functions: Leakage/overcurrent breaker, thermal relay for refrigerator/vacuum pump/circulation pump, shelf temperature overrise prevention, refrigerator high pressure switch, vacuum pump protection device
- Refrigerator/Refrigerant: Air-cooled 1.1 kW + 0.35 kW/R 404 A
- Vacuum pump: 250/300 L/min (50/60 Hz) 1 Pa
- Drying Shelf (Heating/Cooling Area): 360 x 450 x 20 mm, 3 levels fixed (0.48 m 2)
- Trap dimensions: Inner diameter 260 x 553 mm
- Chamber dimensions/Material: Inner diameter 500 x 500 mm/120 L/SUS 304
- Vacuum gauge: Pirani vacuum gauge 0.4 ~ 533 Pa
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 1107 x 797 x 1504 mm
- Weight: approximately 425 kg
- Power input/voltage: 15/12 A, 5.1/4.1 kVA/AC/200 V 3-phase 50/60 Hz
- *Power plug not included.
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- Code: 270320
