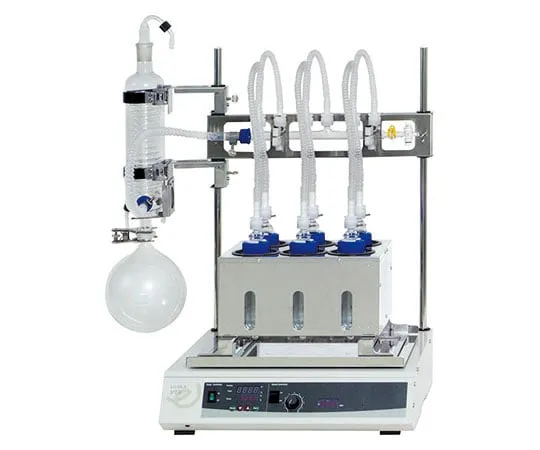

63-1395-43 vortex evaporator VTX-2000
Product Description
Product Model: 63-1395-43Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-43
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Enriching Large Volumes of Environmental Samples Efficiently
- A new type of concentrator that can concentrate even at mild temperatures of around 40°C by swirling shaking under reduced pressure.
- It is concentrated under mild conditions close to room temperature, so contamination can be suppressed.
- Since an analytical concentration vessel is ***d, 1~6 250 mL samples can be concentrated to about 1 mL without drying at the same time. This is an efficient way to preprocess analysis.
Spec
- Decompression Concentration Using Swirl Shaking
- Speed range: 20 ~ 350 rpm
- Temperature adjustment range: room temperature + 10 ~ 80 degrees C
- Temperature control accuracy: +/- 1 degrees C
- Reached vacuum: 7 hPA (5 mmHg)
- Volume range: 250 mL x 6
- Temperature setting and display: Digital setting and display
- Rotation setting and display: Volume setting and digital display
- Temperature control: P.I.D control
- OFF Timer: 0 ~ 99: 59 (hours: minutes)
- Safety features: Ground fault breaker, temperature f***, heater break, sensor break, lock protection, f*** overload protection
- Glass container: 6 x 250 mL (for analysis) VTX-S 20 VP6
- Aluminum block: VTX -20 B (6 containers)
- Temperature control/shaking part: 1 service outlet 4A
- Glass condenser part: Glass condenser, 2L receiving flask
- Vacuum hose connection diameter: outside diameter of connection nozzle: 10 mm
- Cooling water connection diameter: outside diameter of connection nozzle: 10 mm
- Wetted part materials: Glass, Teflon (R), PEEK, Perflo (R)
- Operating ambient temperature range: 20 ~ 35 degrees Celsius (non-condensing)
- External dimensions: 670 x 570 x 710 mm
- Weight: 35 kg
- Power input/voltage: 5.5 A, 550 VA/AC 100 V 50/60 Hz
- *Vacuum Reach is performance at ambient temperature of 20 degrees Celsius and no load.
- Code: 213250
