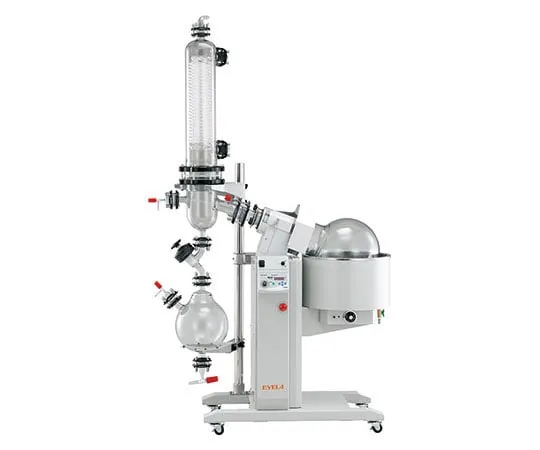

63-1395-30 large evaporator N-22
Product Description
Product Model: 63-1395-30Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-30
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Concentration, Drying, Purification, and Solvent Removal of Production Samples
- Since this bath is ***d for both water and oil, it can be concentrated in a wide range of temperatures, including room temperature and 5~180°C.
- A 20 L sample flask is standard. Uses a one-touch clamp that allows easy attachment and detachment of the sample flask.
Spec
- 20 L (round-bottomed flask)
- Speed range: 10 ~ 140 rpm
- Reached vacuum: 2.6 hPa
- Temperature adjustment range: room temperature + 5 ~ 180 degrees C
- Temperature control accuracy: +/- 1 degrees C/water, +/- 3 degrees C/oil (when rotating sample flask)
- Safety features: One-touch clamp protective cover
- Bus jack function: Electric auto jack
- Bath fluid level management: overflow type
- Heater: 4.3 kW
- Motor: 90 W inverter control
- Cooler: Vertical quadruple serpentine, cooling area: 1.0 m2
- Receiving flask: 10 L (round bottom flask with drain valve)
- Vacuum Seal: Teflon (R) Seal (Adapter Side)
- Inside Bus Dimensions/Capacity/Material: 430 x 250 mm/Approx. 40 L/SUS 304
- Connection diameter: outside diameter of suction nozzle: 22 mm, outside diameter of cooling water nozzle: 22 mm
- Bass jack stroke: 150 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 1277 x 508 x 2160 mm
- Weight: approximately 120 kg
- Power input/voltage: 23 A, 4.3 kVA/200 V AC single-phase 50/60 Hz/* Power plug not included.
- *Performance is measured at room temperature of 20 degrees Celsius and rated supply voltage.
- Code: 265940
