Spec

• Vacuum control, vacuum side waste liquid trap, air side waste liquid trap
• Vacuum setting range: 0 ~ 760 mmHg (Torr), 0 ~ 1013 hPa (mbar), 0 ~ 101.3 kPa
• Vacuum measurement range: 0 ~ 800 mmHg (Torr), 0 ~ 1066 hPa (mbar), 0 ~ 106.6 kPa
• Paper temperature measurement range: 0 ~ 150 degrees C (when paper temperature sensor is connected)
• Setting and control system: Dial type encoder, key input/solenoid valve ON-OFF or variable output voltage
• Time setting range: constant value/program control: 1 ~ 999 min, slope control: 1 ~ 999 min, step control: 0 ~ 999 min
• Control Program: Constant Value, Solvent Program, Auto Step Program
• Control items: pressure control, temperature control (cooling water and bath vapor), jack control, rotation ON-OFF control, voltage output control, power ON-OFF control
• indicator; Color TFT LCD (4.3 inches)
• Display Items; Operating mode, operating status, measured pressure, set pressure, paper temperature (with sensor connection sold separately), operating time, bus temperature, cooling water temperature, rotary evaporator speed (with communication cable connection)
• External input/output: common communication terminal for cooling water circulator, bus and rotary evaporator, inverter pump communication terminal, paper temperature sensor terminal, micro USB (for personal computer communication)
• Waste liquid trap bottle (Wolf bottle): 1 on the air side, 1 on the vacuum side

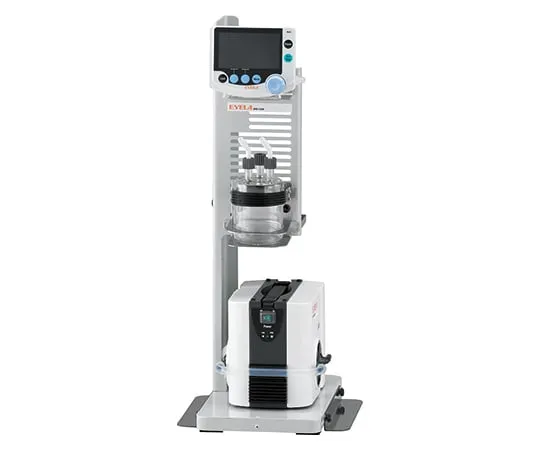

• Vacuum controller: NVC -3000 type + connecting cable
• Pressure Control: Inverter Control Output Adjustment
• Piping Material: Glass, Teflon (R), PDVF, FFKM, PP
• Connection diameter: outside diameter of suction/cooling water nozzle: 10 mm
• Vacuum pump (sold separately): NVP-V series
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (mm): 200 (340) x 350 x 630/* () dimensions include protrusions, waste liquid traps and bases.
• Mass: 7.8 kg
• Power input/power voltage: 1 A 100 VA/AC 100 ~ 240 V 50 ~ 60 Hz (not including vacuum pump)
• *A vacuum pump is required for ***.
• *Diaphragm type vacuum pump and inverter diaphragm type vacuum pump are sold separately.
• *Dedicated connection cables ND -0.5 M and 2 M are required when using DTC -31 DC.
• Code: 271250
