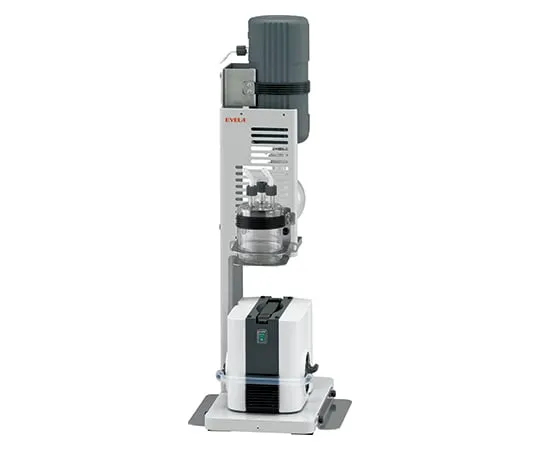

63-1395-19 Solvent recovery unit for concentrators DPE-1250A
Product Description
Product Model: 63-1395-19Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1395-19
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Vacuum controllers, secondary coolers, waste liquid traps, suction cartridges, etc. can be recombined to fit the purpose, and the original unit can be configured.
Spec
- Cooler
- Cooler/Receiver: Exhaust trap/recovery flask 500 mL
- Waste liquid trap bottle (Wolf bottle): 1 on the vacuum side
- Piping Material: Glass, Teflon (R), PDVF, FFKM, PP
- Connection diameter: outside diameter of suction/cooling water nozzle: 10 mm
- Vacuum pump (sold separately): NVP/EVP series, NVP-V series
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions (mm): 200 (340) x 350 x 720/* () dimensions include protrusions, waste liquid traps and bases.
- Mass: 7.8 kg
- Power input/power voltage: 1 A 100 VA/AC 100 ~ 240 V 50 ~ 60 Hz (not including vacuum pump)
- *Vacuum pumps, cooling water circulators, etc. are required for ***.
- *Diaphragm type vacuum pump and inverter diaphragm type vacuum pump are sold separately.
- Code: 271220
