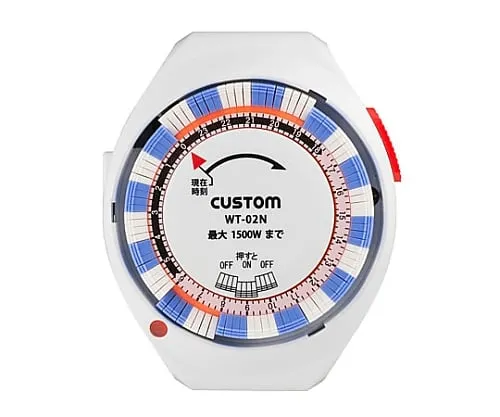

61-0003-23-56 24 hour timer with English Calibration Certificate WT-02N
Product Description
Product Model: 61-0003-23-56Product Brand: CUSTOM corpo […]
Contact Us
Product Details
Product Model: 61-0003-23-56
Product Brand: CUSTOM corporation
Features
- The power can be controlled in 15 minute increments with the blue and white switch settings.
- It is easy to understand beca*** it is a switch type time setting that you can see at a glance.
Spec
- Maximum configuration time: 24 hours
- Minimum setting time: 15 minutes
- Number of operations: in 15 minute increments, Number of pins (switches): 96
- Rated voltage: 100 VAC, 50/60 Hz
- Capacity: 15 A or less (1500 W or less)
- Timer accuracy: +/- 15 minutes per day
- Power consumption: 1W or less
- Operating temperature and humidity: 0 to + 40 degrees C, below 70% RH (However, no condensation)
- Storage temperature and humidity: 0 to + 55 degrees C, below 80% RH (However, no condensation)
- Dimensions and weight: W 80 x H 97 x D 42.5 mm, approx. 130 g
- Material: Material: PC (Polycarbonate)
- Uses a safety-conscious flame-retardant resin.
- JETPSE mark certified product.
